KL1304 F0°

NORDIC LIGHTS® KL1304 F0° work light is a completely integrated, compact flush mount LED work light with a 0° tilt angle and the cooling lamellas placed inside of the application body. The KL1304 F0° matches the basic introduction level needs for heavy-duty lighting and is a suitable light when replacing halogen flush mount work lights.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Cooling lamellas inside application body
  • Compact
  • Operational lumens output: 1500lm

Connectors

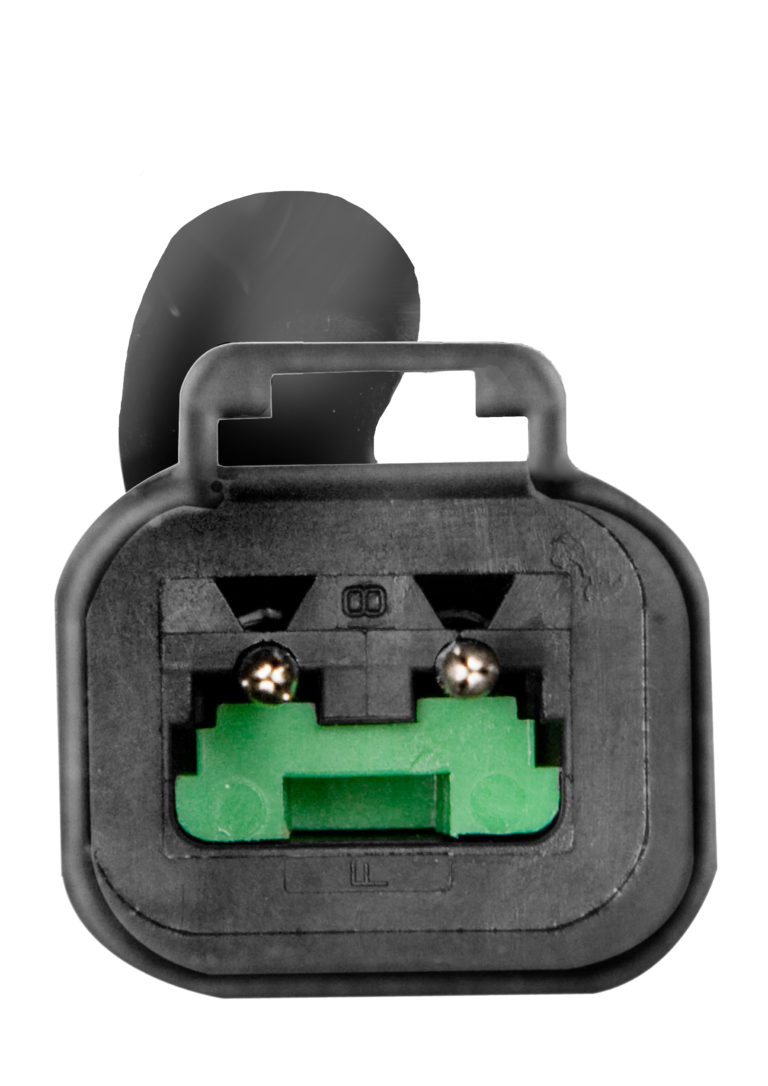

Pigtail Deutsch 2-pin

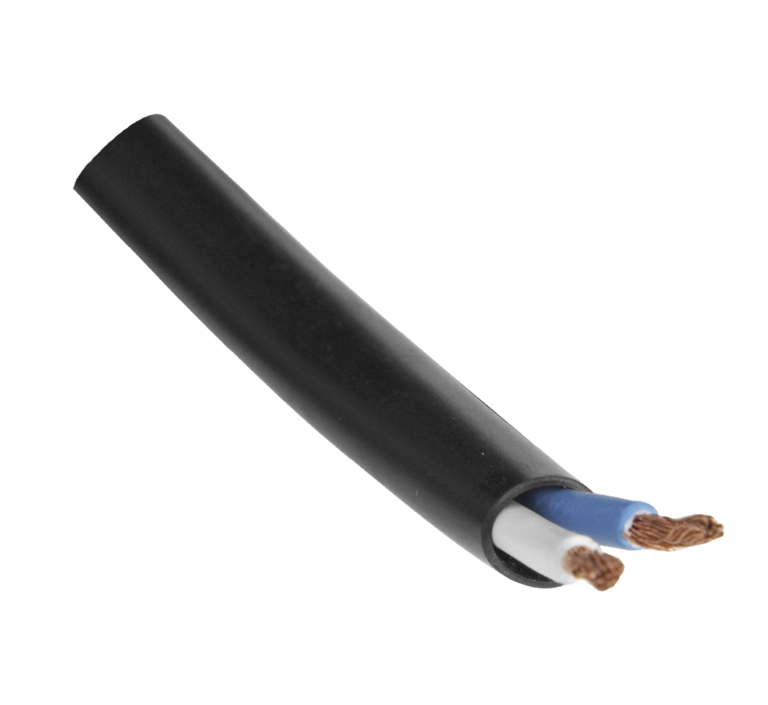

Fly leads

Technical Data

Theoretical Lumens Output2400lm
Operational Lumens Output1500lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 16V, 18 - 32V
Power Consumption24W
Nominal Current at24V=1.0A, 12V=2.0A
ConnectorFly leads, Pigtail Deutsch 2-pin
ElectronicsIsolated
MountIntegrated
Shock60G
Vibration8Grms 24-2000Hz
LensPC
Body / HousingAluminium
Weight0.45kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

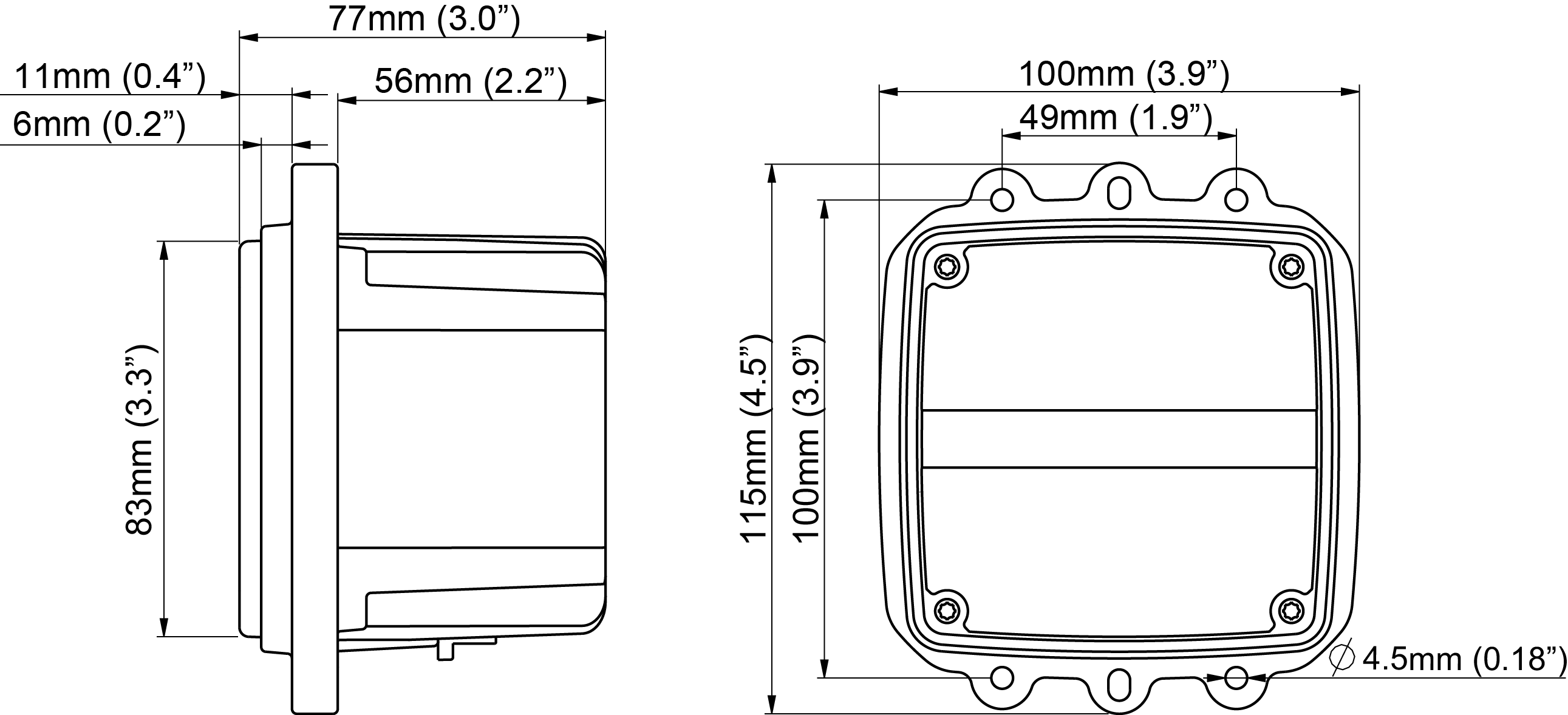

Drawings

Click to zoom

Part Numbers

Diffused: 982-505B
Flood: 982-504B
