Flush mount / N100 FLM series / N100 HALOGEN F27°

N100 HALOGEN F27°

NORDIC LIGHTS® N100 Halogen F27° is a rectangular flush mount work light which offers wide illumination and allows unobtrusive fitting to vehicle panels, toolboxes and service bodies with an angle of 27°.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Angle: 27°
  • Operational lumens output: 1400lm (24V)
  • Non-dazzling

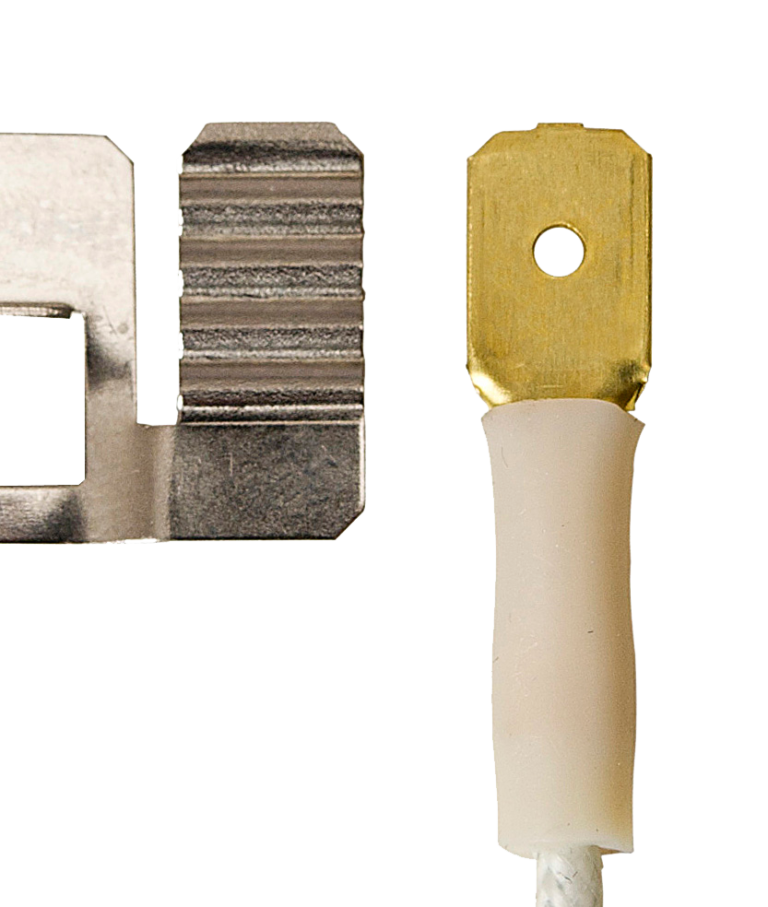

Connectors

AMP Terminal

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
BulbH3
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorAMP Terminal
MountIntegrated
LensHardened Glass
Body / HousingPolyamide
Weight0.5kg
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
