N25 HALOGEN FB12° SNAP-IN

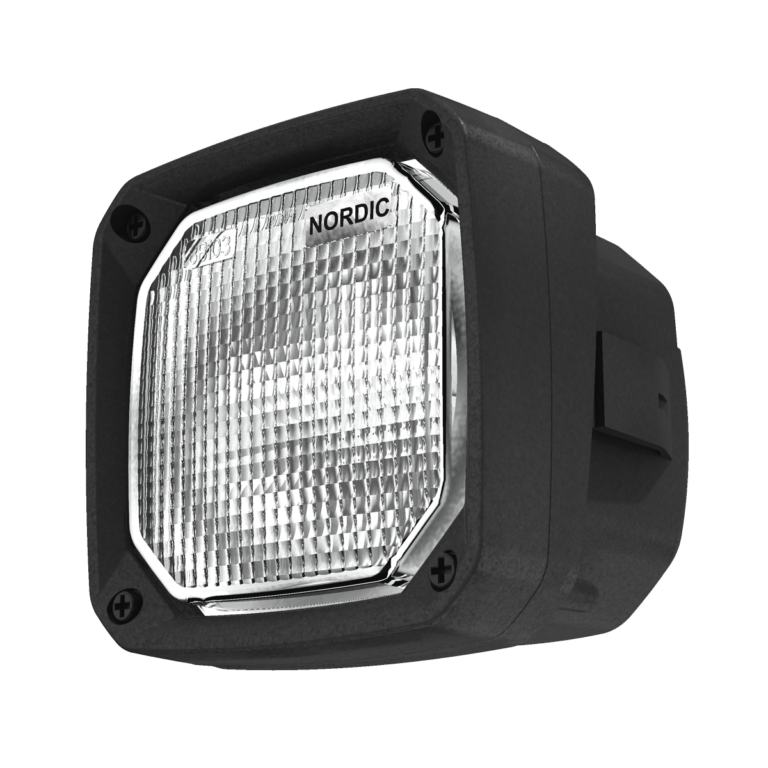

NORDIC LIGHTS® N25 Halogen FB12° Snap-In is a compact flush mount work light which allows unobtrusive fitting to vehicle panels, toolboxes and service bodies with limited space and with an angle of 12°. This work light features a “click-in” easy and cost saving mount, and a polyamide rear housing.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Angle: 12°
  • Operational lumens output: 1400lm (24V)
  • Snap-in

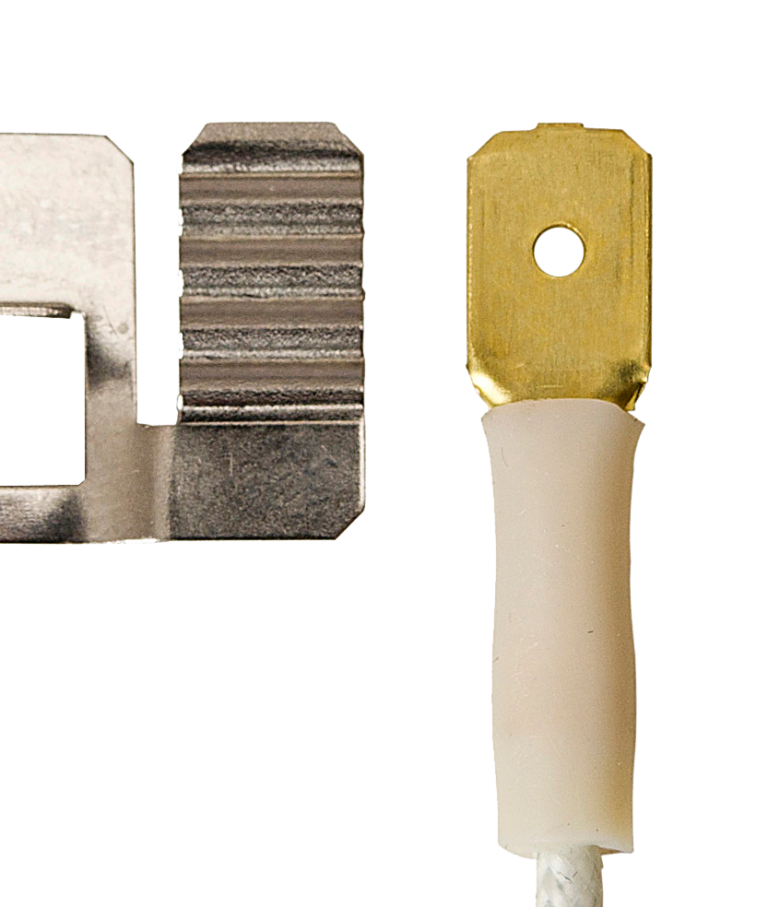

Connectors


AMP Terminal

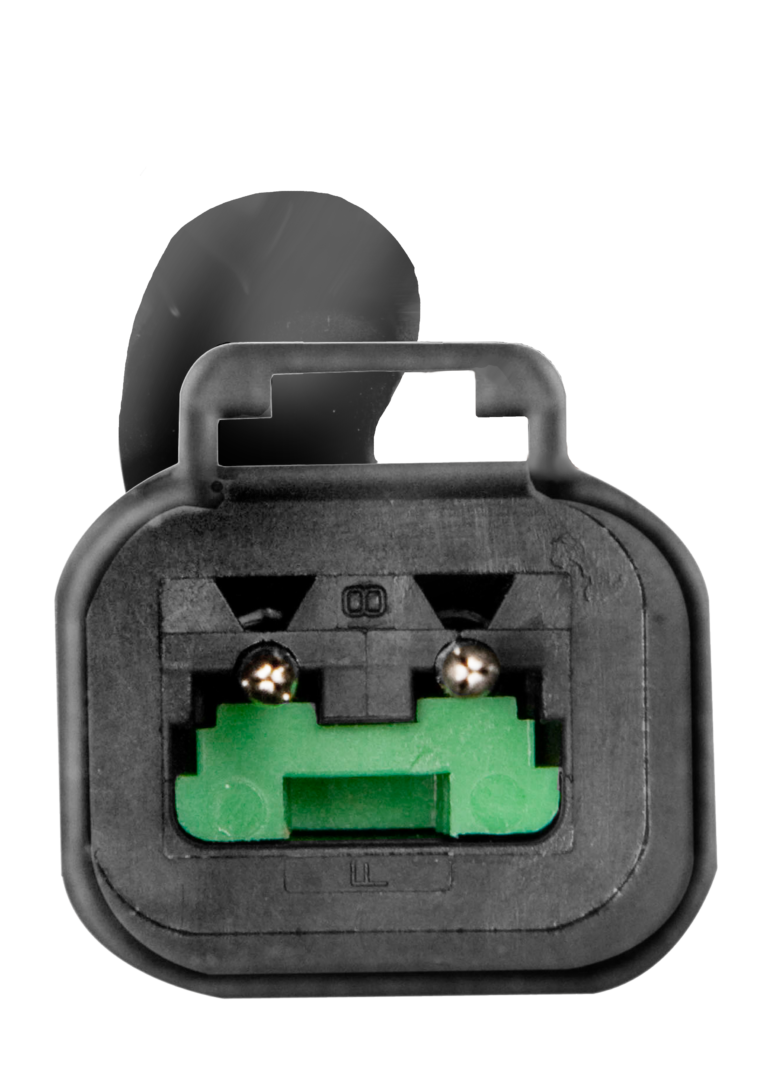

Pigtail Deutsch 2-pin

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
BulbH3
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorAMP Terminal, Pigtail Deutsch 2-pin
MountIntegrated
LensHardened Glass
Body / HousingPolyamide
Weight0.7kg
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
