N100 HALOGEN S

NORDIC LIGHTS® N100 Halogen S work light is suitable for locations requiring wide illumination. This heavy-duty work light is equipped with a side mounting bracket. The N100 Halogen S runs like clockwork from dusk to dawn.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Side Mounting
  • Operational lumens output: 1400lm (24V)
  • Easy fit for many applications

Connectors

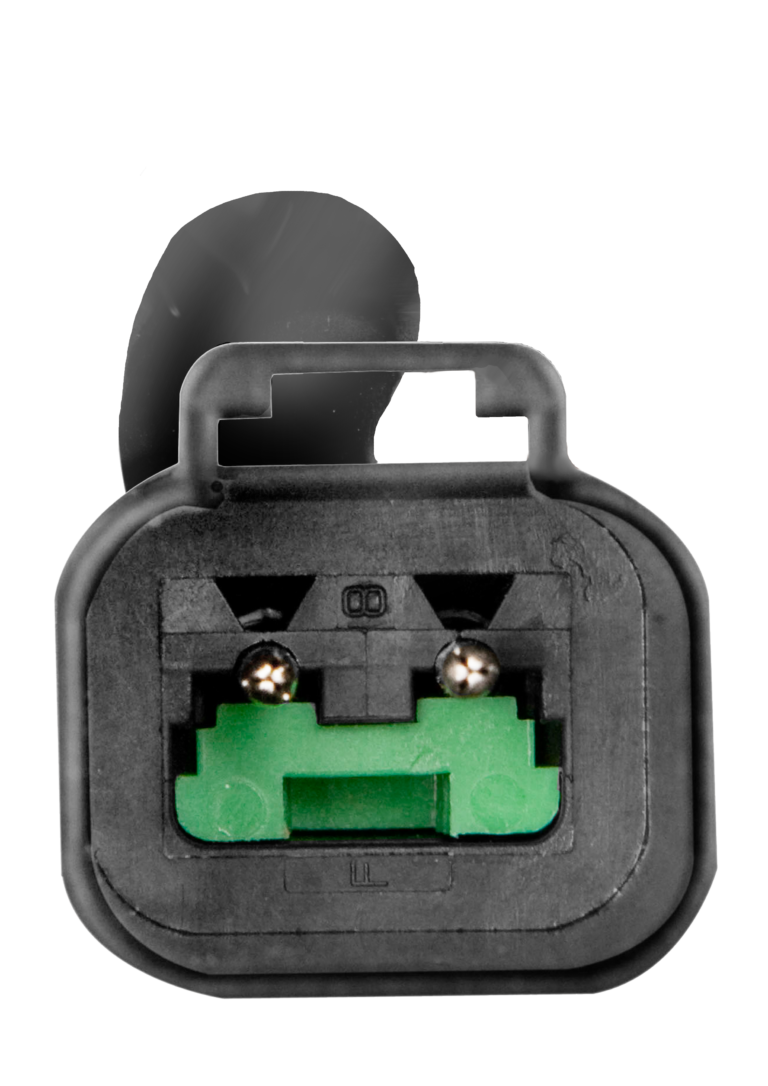

Pigtail Deutsch 2-pin

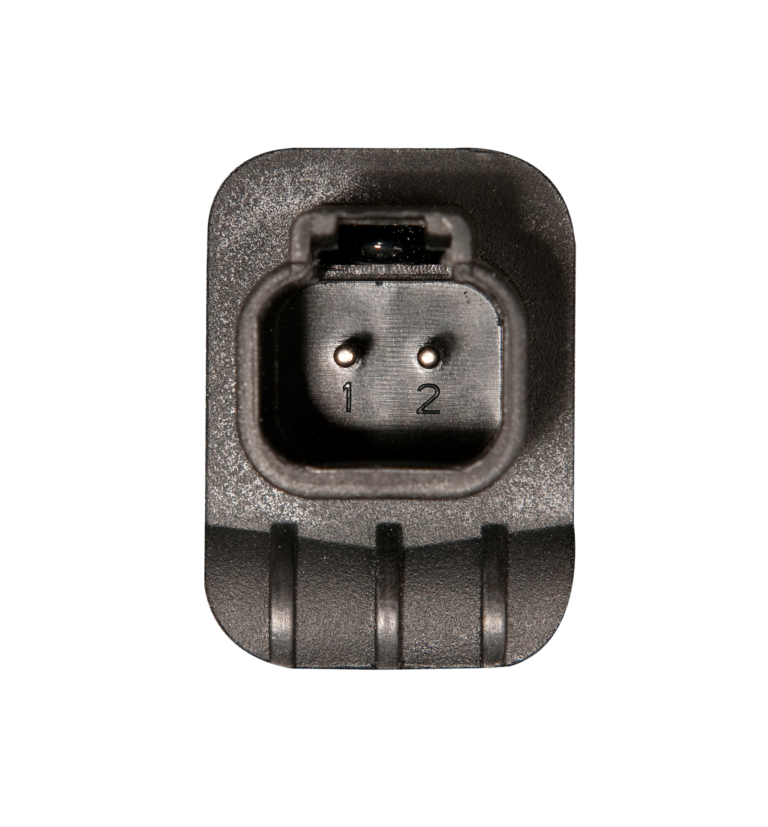

Built-in Deutsch DT-2 (2-pin)

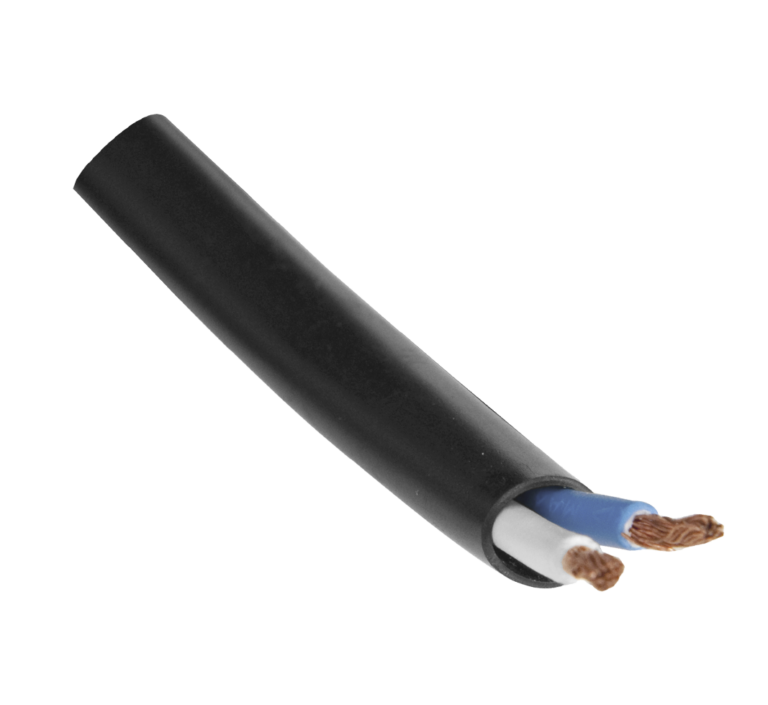

Fly Leads

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
BulbH3
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorBuilt-in Deutsch DT-2 (2-pin), Pigtail Deutsch 2-pin, Fly Leads
MountSingle Bolt M10, Single Bolt M8
LensHardened Glass
Body / HousingPolyamide
Weight0.5kg
IP RatingIP67 (not Grommet)
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
