N25 I - NORDIC LIGHTS® - Herrmans Oy Ab

N25 HALOGEN I

NORDIC LIGHTS® N25 Halogen I work light is an ECE-approved indicator light with a compact and rugged design. This work light is suitable for use in a multitude of applications. The N25 Halogen I is ideal for forklifts, mining, earth-moving, agricultural and construction equipment - wherever a compact, robust indicator is required.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Compact
  • ECE Approved
  • Indicator

Connectors

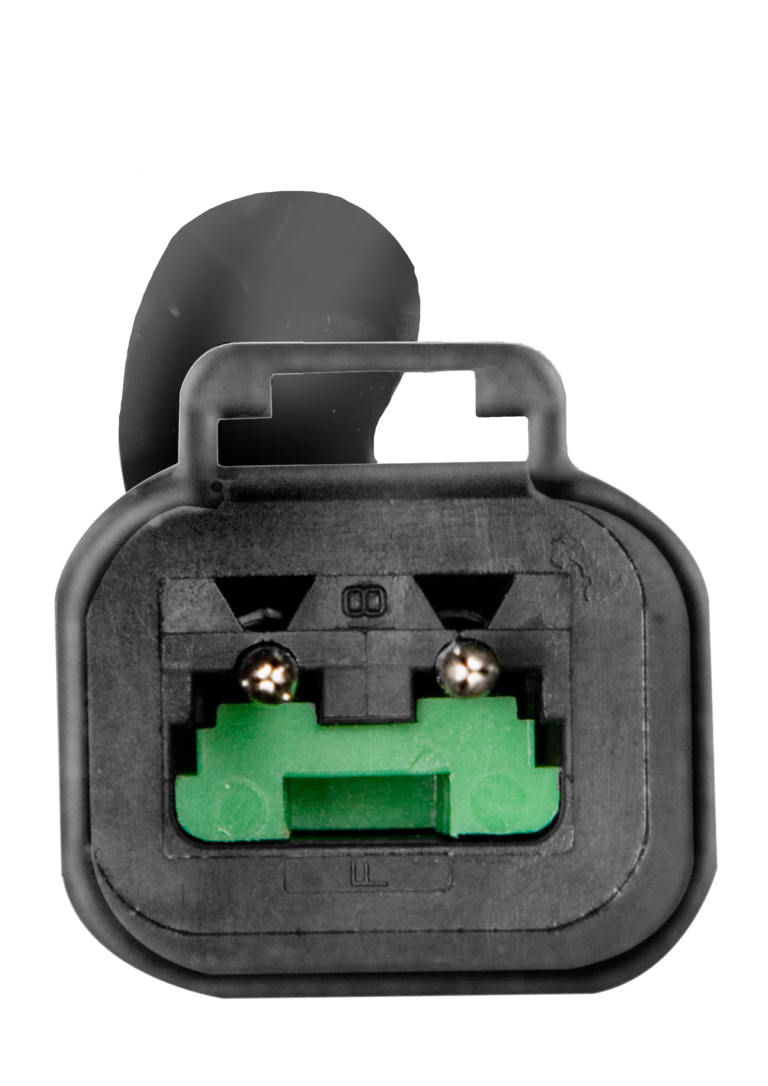

Pigtail Deutsch 2-pin

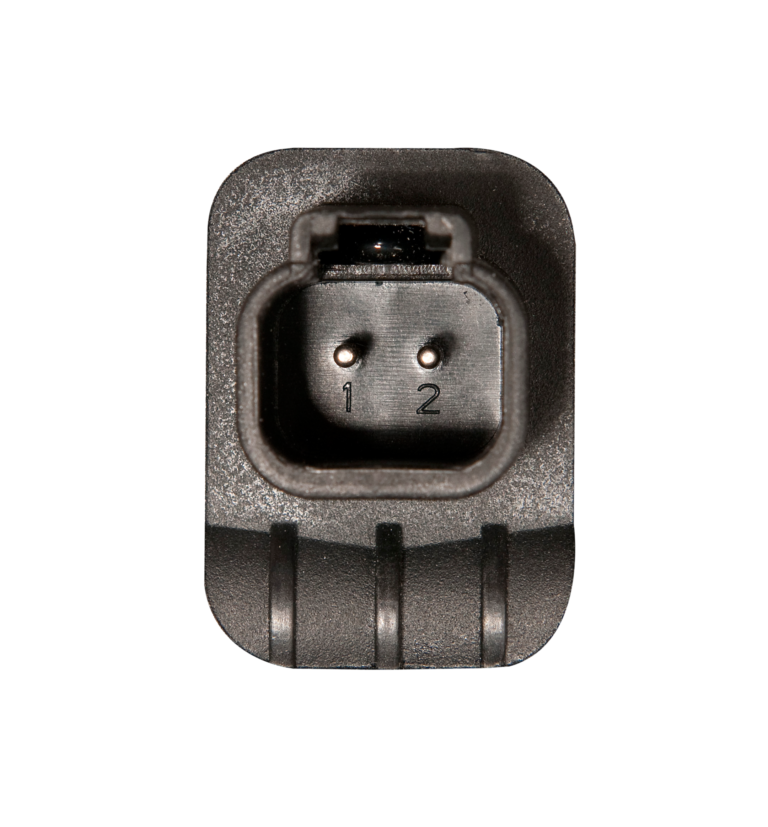

Built-in Deutsch DT-2 (2-pin)

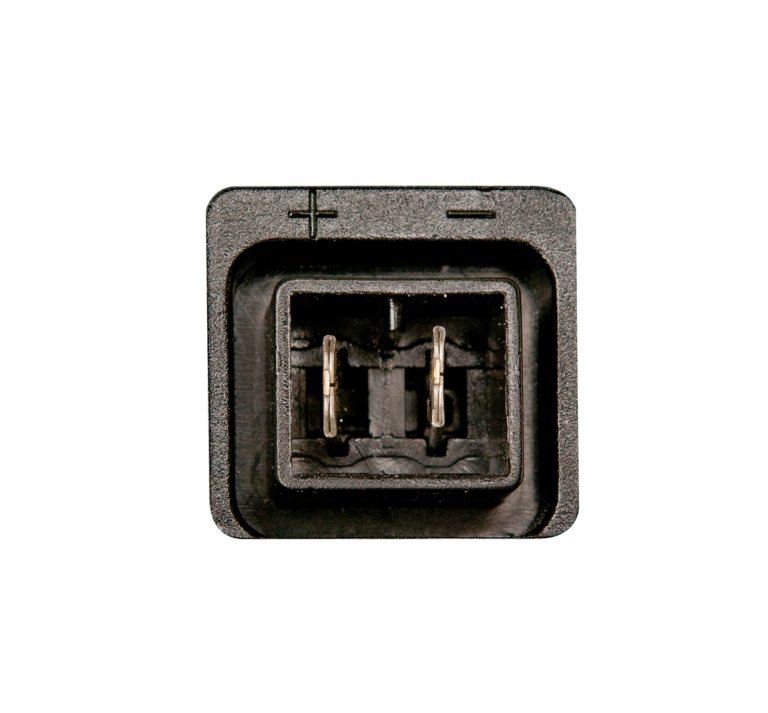

Built-in AMP

Technical Data

ApprovalsECE
Nominal Voltage DC12V, 24V
Input Voltage DC8 - 16V, 16 - 32V
Bulb12V: 12V P21W (BA15s), 24V: 24V P21W (BA15s)
Nominal Current at12V=4.6A, 24V=2.7A
ConnectorBuilt-in Deutsch DT-2 (2-pin), Pigtail Deutsch 2-pin, Built-in AMP
MountSingle Bolt M10, Single Bolt M8
LensPC
Body / HousingPolyamide
Weight0.4kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
