N25 HALOGEN

NORDIC LIGHTS® N25 Halogen work light features a compact and rugged design. This heavy-duty work light is suitable for use in a multitude of applications. It is ideal for forklifts, mining, earth-moving, agricultural and construction equipment - wherever a compact, robust lighting source is required.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Compact
  • Operational lumens output: 1400lm (24V)
  • Vertical or pendant mounting

Connectors


Pigtail Deutsch 2-pin

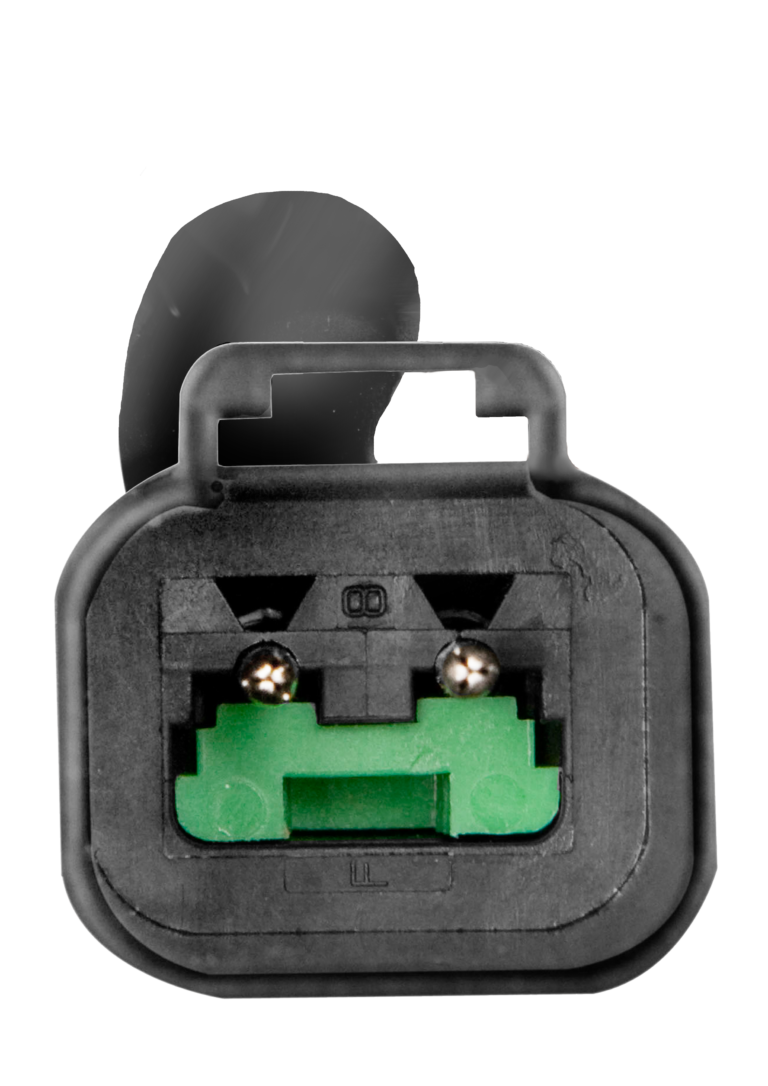

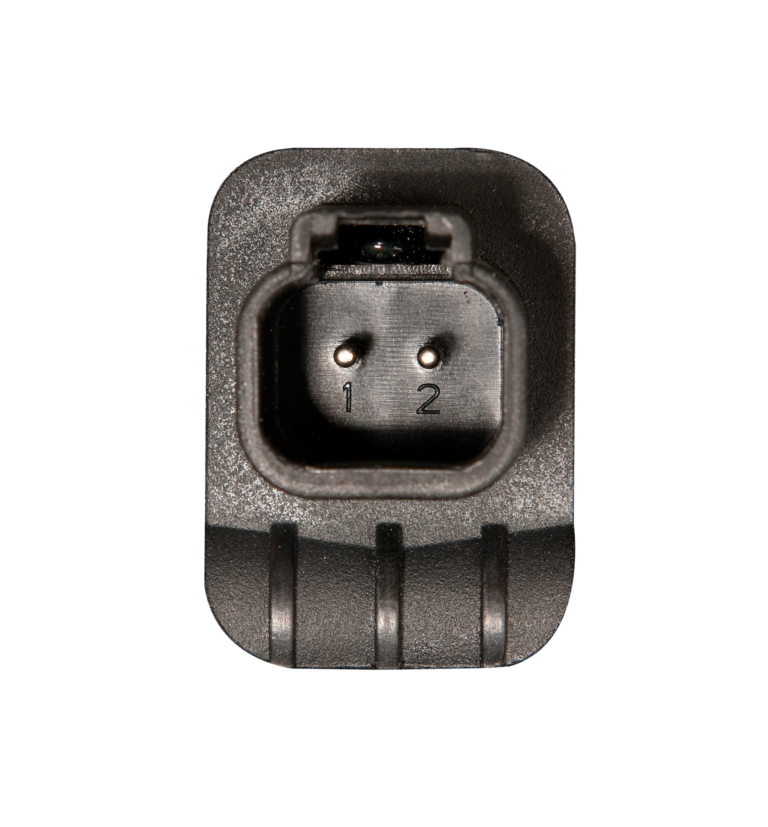

Built-in Deutsch DT-2 (2-pin)

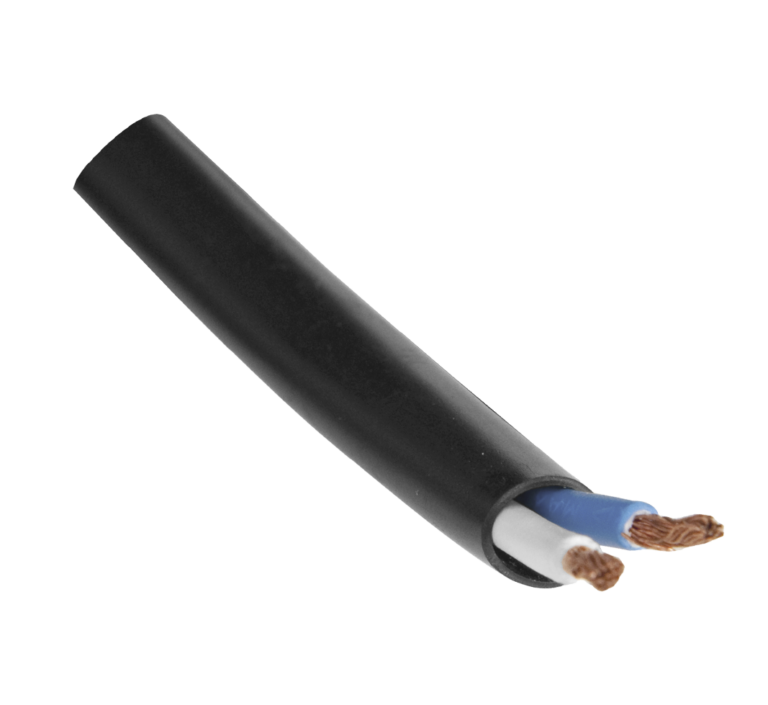

Fly Leads

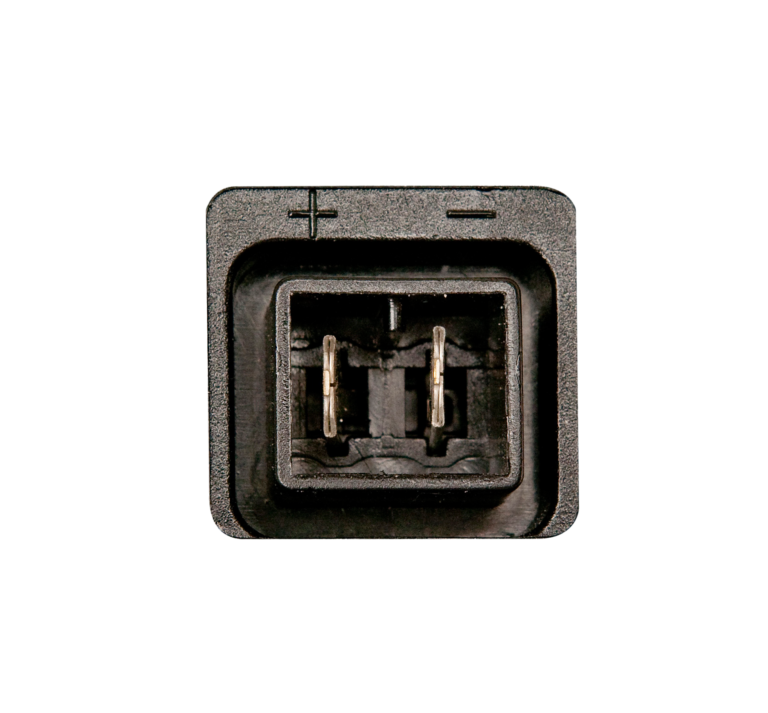

Built-in AMP

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
BulbH3
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorBuilt-in Deutsch DT-2 (2-pin), Pigtail Deutsch 2-pin, Built-in AMP, Fly Leads
MountSingle Bolt M10, Single Bolt M8
LensHardened Glass
Body / HousingPolyamide
Weight0.4kg
IP RatingIP67 (not Grommet)
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
