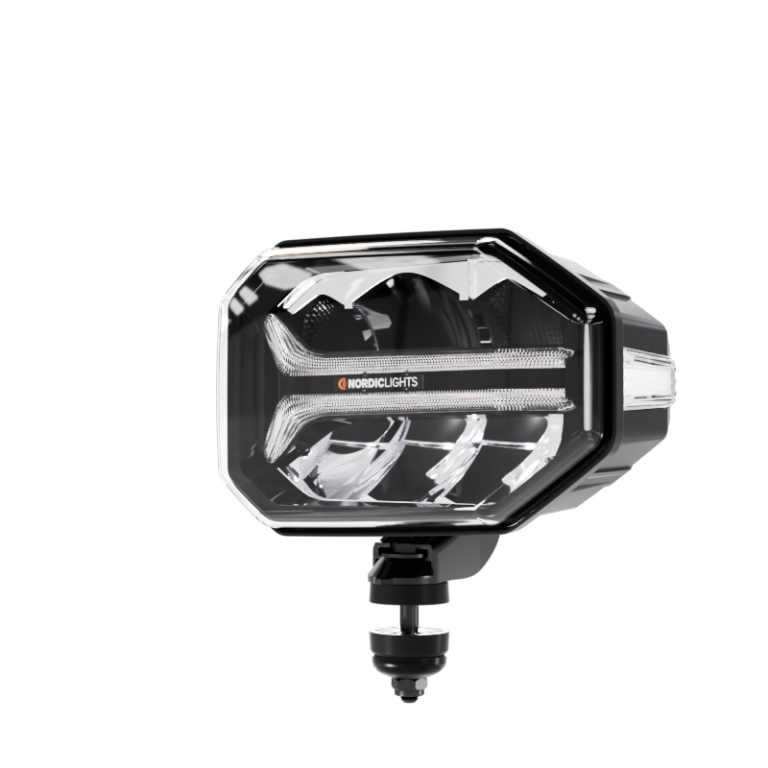

Sculptor 2

The Sculptor 2 combines five functions into one combination LED headlight – DRL, low beam, high beam, direction indicator and position light. Featuring a mix of carefully chosen parts and masterfully designed functions, the result is a headlight with excellent features that will stand the test of time. The expertly designed optics enable superb near-field illumination. The low beam will let you see what’s up close – obstacles, people, other vehicles and the road ahead. The integrated DRL offers maximum daytime visibility and safety on and off the road. It’s time to maximize safety and productivity with Sculptor 2.

No todos los productos están disponibles en todos los mercados. Las especificaciones y diseños van cambiando en función de un proceso de mejora continuo. \nTodos los valores son nominales. Las imágenes no necesariamente muestran el diseño de cada versión y algunas funciones dependen de la versión. El rendimiento lumínico varía en función del color de la lente.

Características principales

  • 5-in-1 combination LED headlight
  • Excellent near-field illumination
  • Integrated Daytime Running Light (DRL)

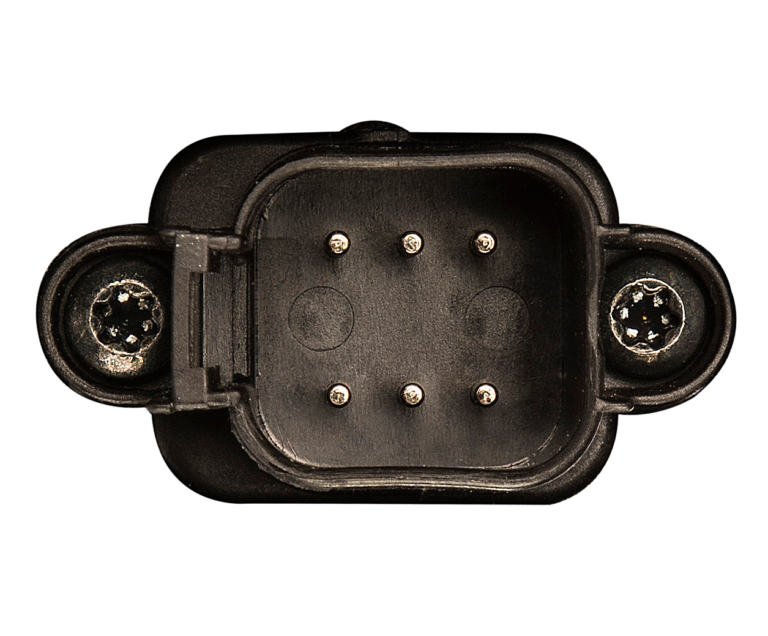

Conectores

Datos técnicos

Temperatura de color5700K
Tensión nominal de CC12V, 24V
Rango de tensíon de entrada de CC9 - 32V
Consumo de energía 12 / 24VHigh Beam 57.5W, Low Beam 38.5W, Position Light 4.0W, DRL 17.5W, Direction Indicator 21W
Corriente nominal aHigh Beam 2.4A@ 24V / 4.8A@12V, Low Beam 1.6@24V / 3.2A@12V, Position Light 0.15A@24V / 0.3A@12V, DRL 0.6A@24V / 1.2A@12V, Direction Indicator 0.88A@24V / 1.75A@12V
ConectorBuilt-in Deutsch DT-6 (6-pin)
MontajeSingle Bolt M10
Golpes30G
Vibraciones9.8Grms 24-2000Hz
LenteGlass
CarcasaAluminum, Polyamid
Peso2.5kg
Clasificación IPIP68, IP6K9K
Niebla salinaISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, ECE R10, ISO 11452, ISO 10605, ISO 16750, EN 61000-4-2
ECE HomologaciónPassing beam: ECE R149 (Class B) Driving beam: ECE R149 (Class B) Position light: ECE R148 (Symbol A) DRL: ECE R148 (Symbol RL) Direction indicator: ECE R148 [Symbol 1B (front) & symbol 5 (side)]
Temperaturas de funcionamiento-40°C... +85°C (Overheat protected)
Sistema electrónicoIsolated

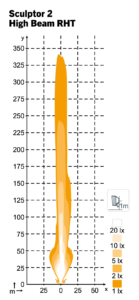

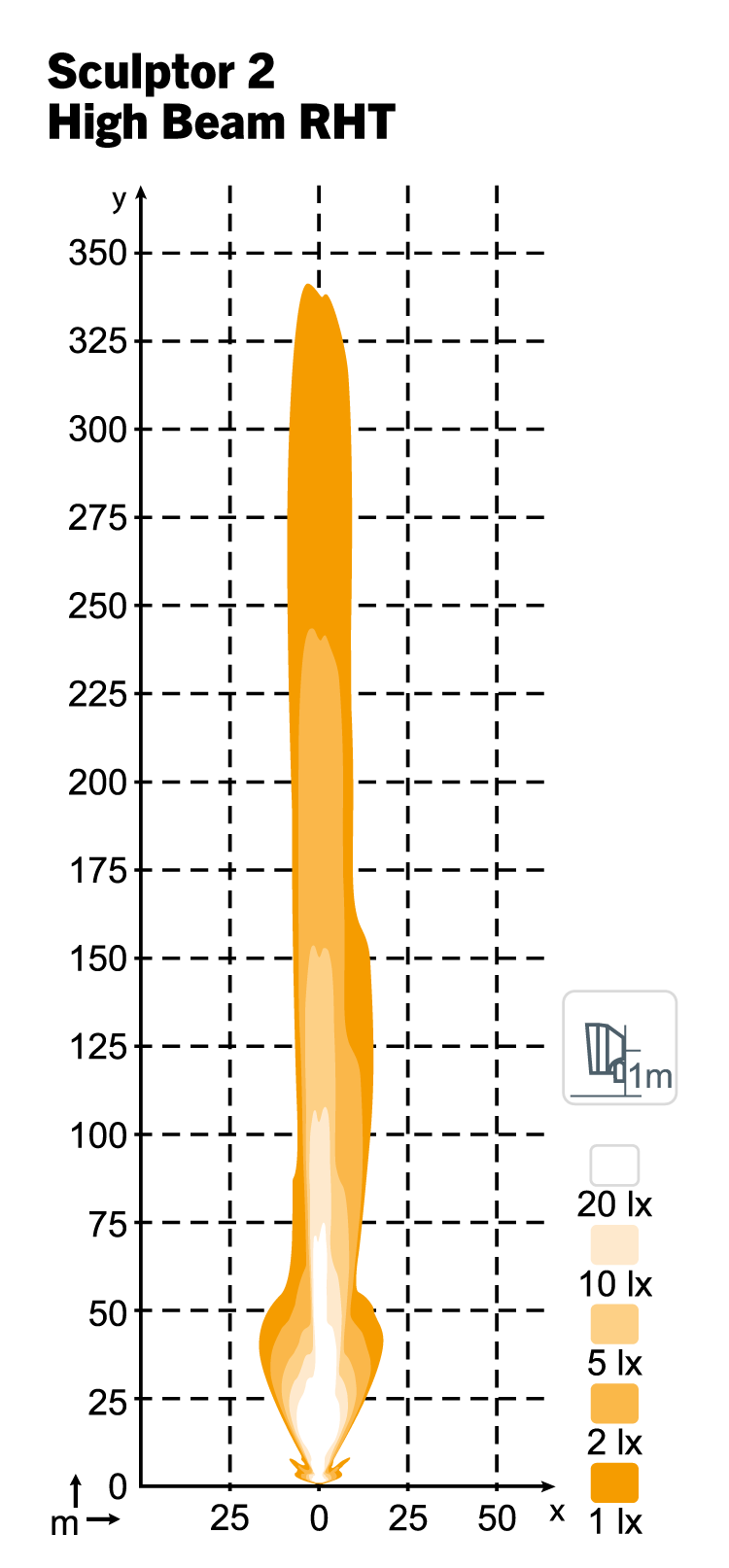

Patrones de iluminación

Haga clic para hacer zoom

Ilustraciones

Haga clic para hacer zoom

Números de piezas

TBA
