N200 HALOGEN D

NORDIC LIGHTS® N200 Halogen D work light is a robust light equipped with the HD dampening system. This work light is designed to surpass OEM standards for vibration, moisture and dust. With proven reliability from arctic to equator.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • HD Dampening
  • Operational lumens output: 1400lm (24V)
  • Vertical, Pendant or Side mount

Connectors

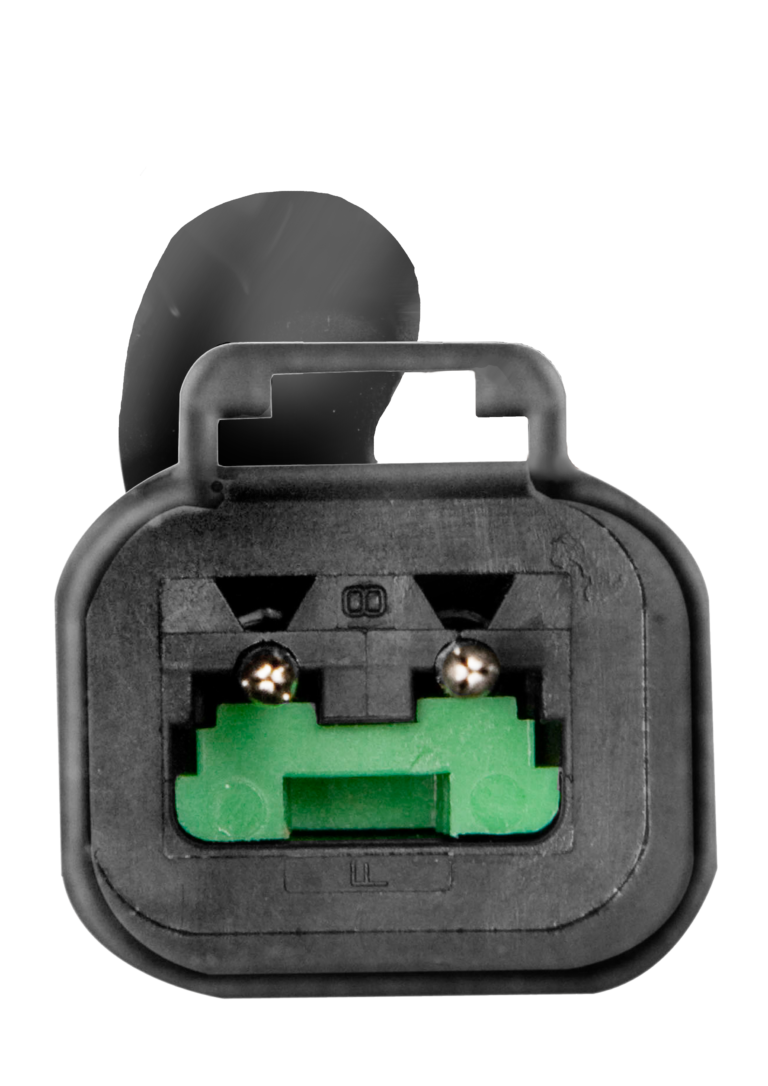

Pigtail Deutsch 2-pin

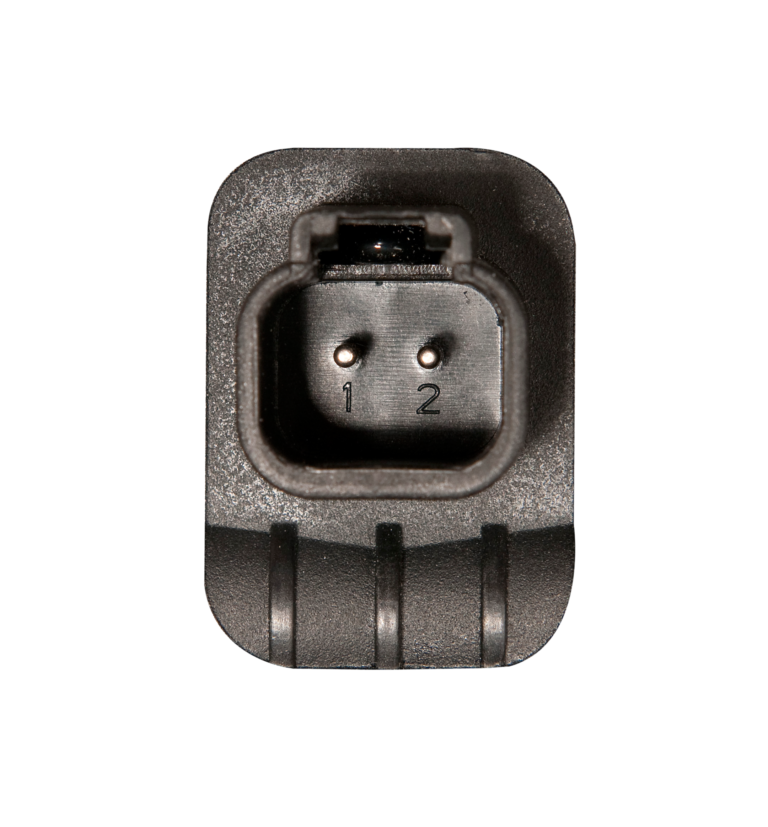

Built-in Deutsch DT-2 (2-pin)

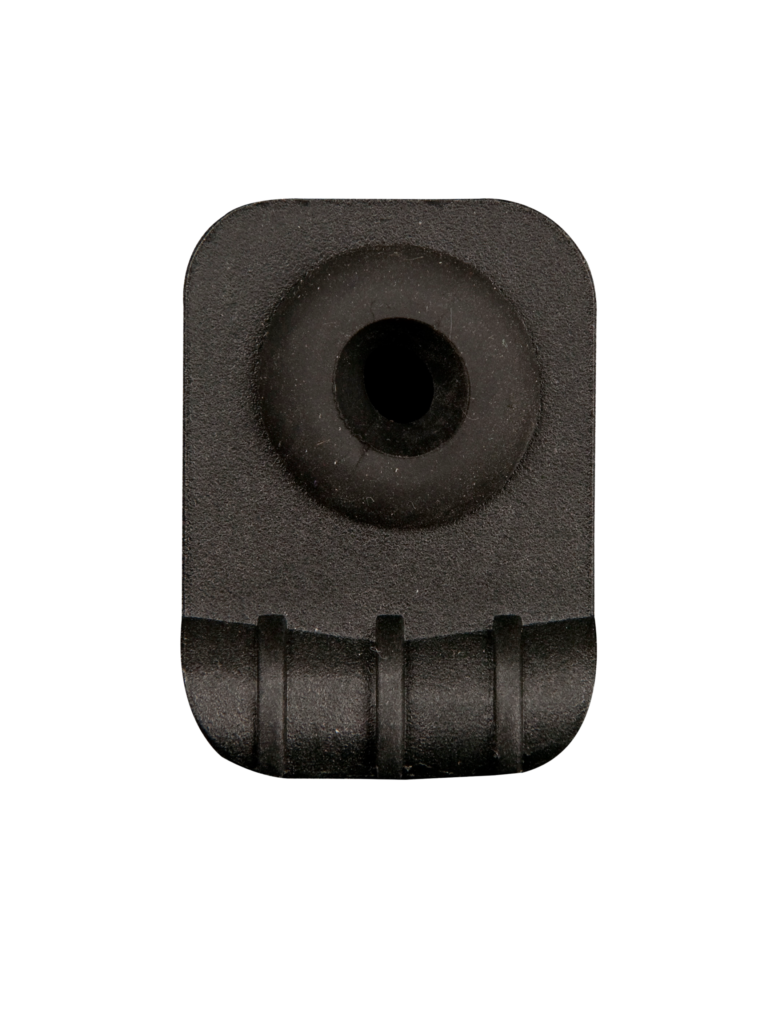

Grommet

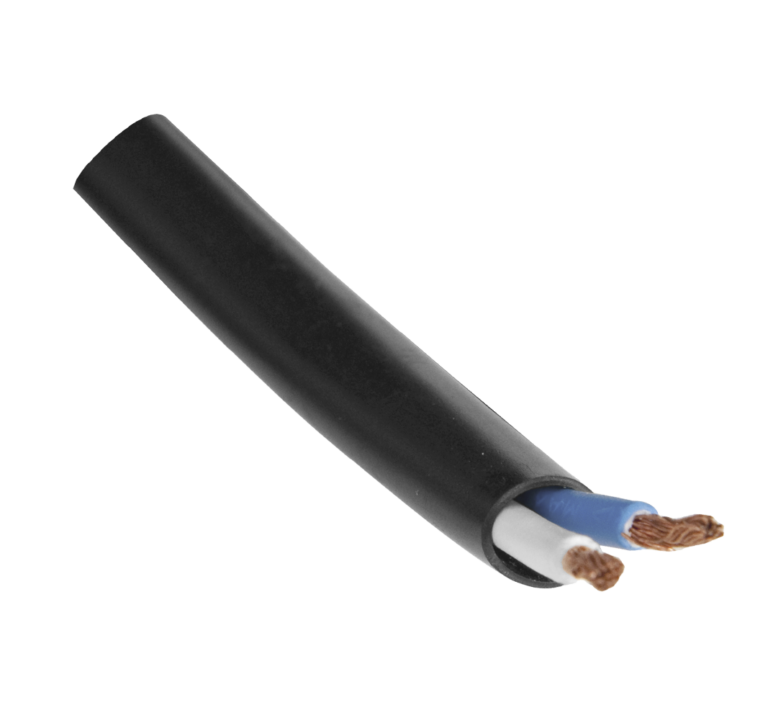

Fly Leads

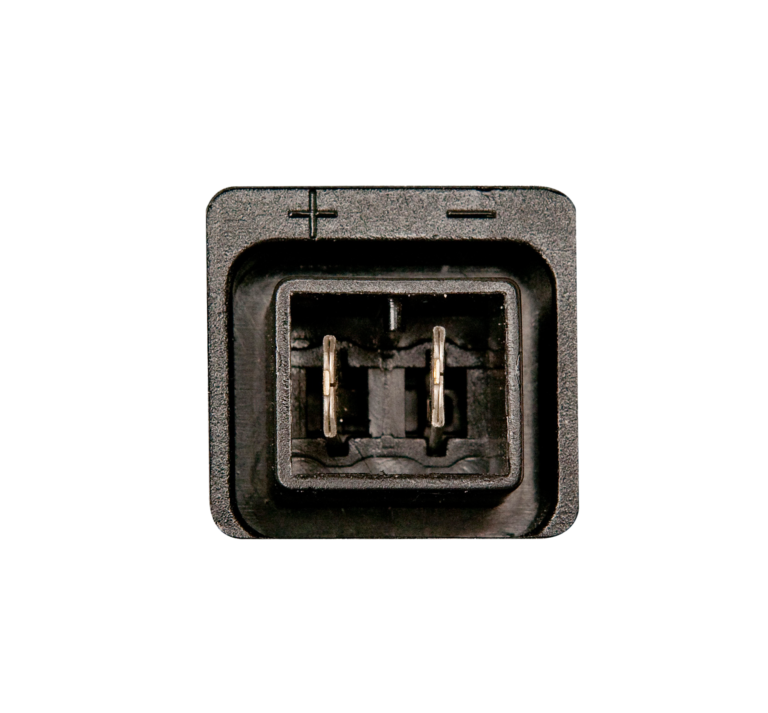

Built-in AMP

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
BulbH3
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorBuilt-in Deutsch DT-2 (2-pin), Pigtail Deutsch 2-pin, Grommet, Built-in AMP, Fly Leads
MountSingle Bolt M10, Single Bolt M8
Vibration8.57Grms 18-600Hz
LensHardened Glass
Body / HousingGlass Fibre Reinforced Polyamide
Weight0.6kg
IP RatingIP67 (not Grommet)
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom

Drawings

Click to zoom
