BULLDOZER LIGHTS FOR TOUGH CONDITIONS

NORDIC LIGHTS® LED lights are dustproof, waterproof, shock- and vibration-resistant, and have excellent protection against corrosion.

Bulldozer LED Lights

The bulldozer lays down the groundwork for the rest of your construction – make sure that it meets the rest of your standards. NORDIC LIGHTS® LED bulldozer lights make your daily construction tasks easier, safer, and more efficient. Whether you’re looking for work lights or other special lights, our extensive range of heavy-duty LED lights has you covered in all areas.

Our LED lights suitable for mounting on dozers are all dustproof, waterproof, temperature- and weather-resistant, and have an extraordinarily long lifetime (30,000 to 50,000 hours) to ensure that you can keep your activities up and running for as long as possible. Upgrading to NORDIC LIGHTS® LED lights is one of the smartest and most cost-effective investments you can make.

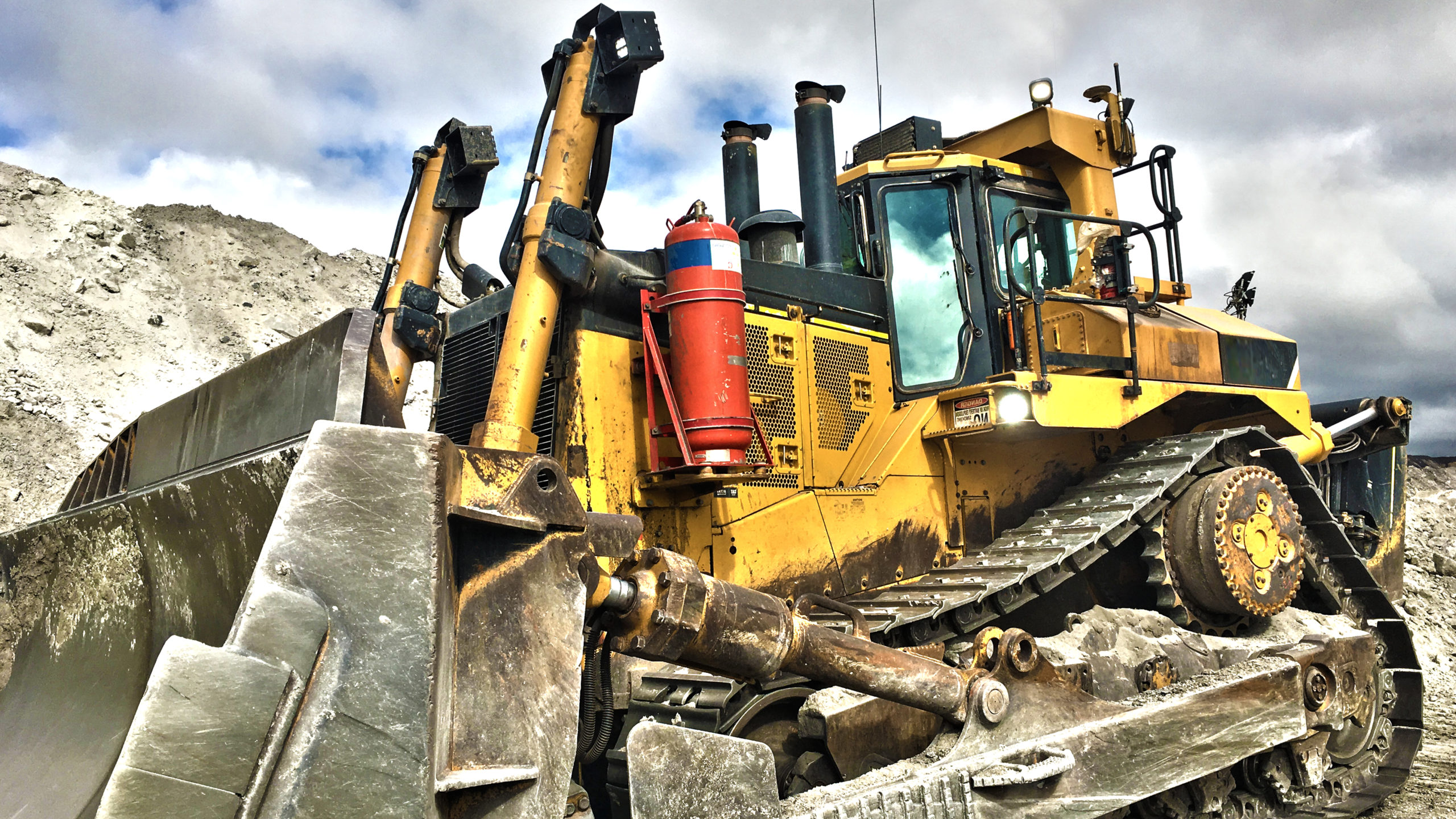

Yellow Bulldozer with LED lights by Nordic Lights mounted in back

The Ultimate LED Lights for Your Bulldozer

NORDIC LIGHTS® LED lights are designed to provide you with the best possible vision and clarity from your bulldozer. Years of testing and R&D have led us to the point that we are comfortable in calling our work lights the best on the market.

Durability for Years

While LED work lights are a step up in price compared to halogen and HID (Xenon) lights, the initial investment pays itself over several times due to the long and hassle-free lifetime of the product. NORDIC LIGHTS® LED lights are virtually maintenance-free and have a lifetime of between 30,000 and 50,000 hours compared to 5000 for HID (Xenon), and 500 for Halogen. That means no more waiting for replacement bulbs or maintenance crews.

The individual high-quality LEDs are installed on a circuit board, which is then screwed into place inside an aluminum housing. Our lenses are made of different polymers or tempered glass, which have been hand-picked to suit the recommended applications. We test all of our lights before they are shipped out to the customer.

Our comprehensive warranty provides peace of mind that your LED bulldozer lights will continue working for many years without issues. The full details of our warranty policy can be found here.

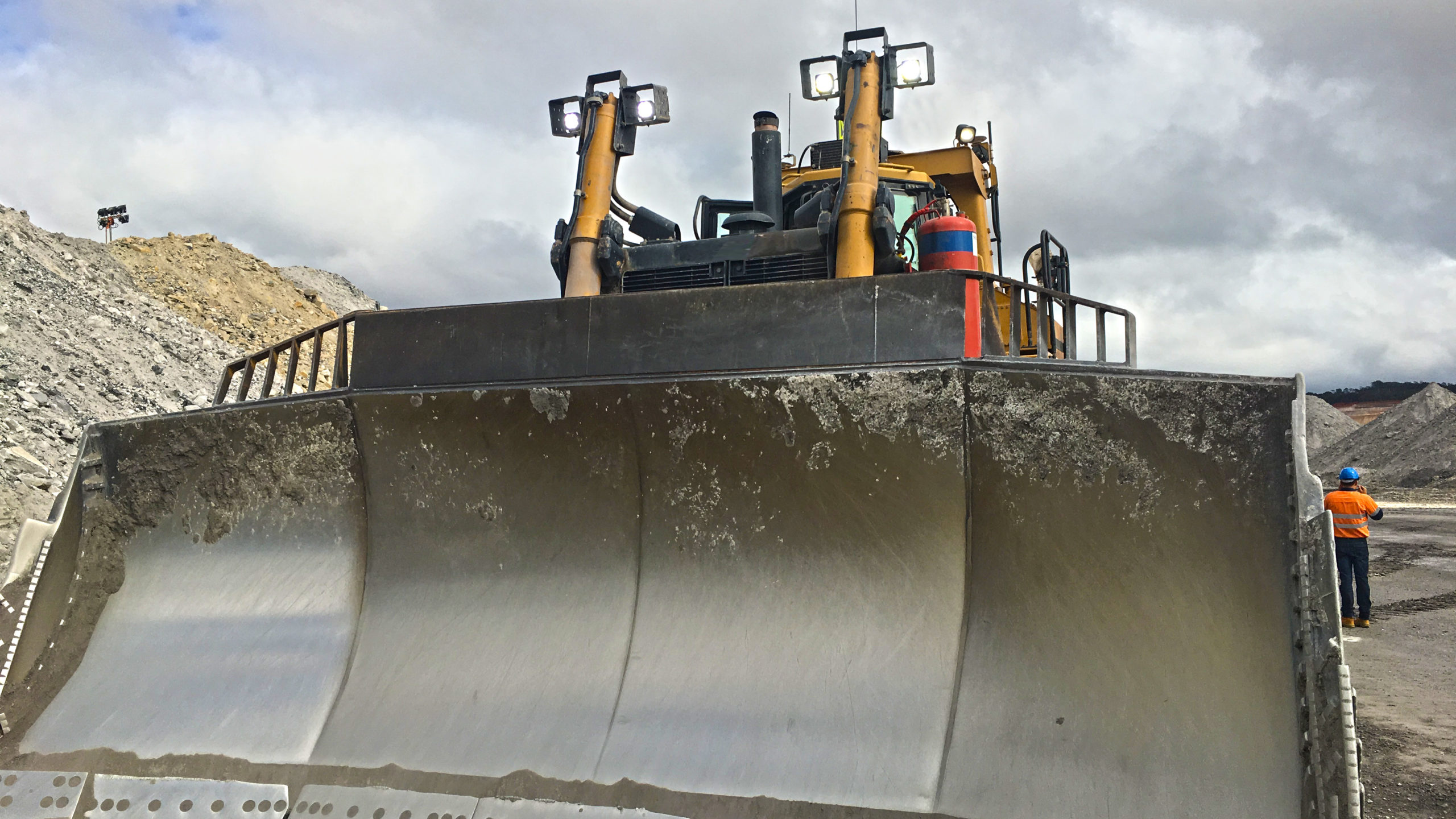

yellow bulldozer equipped with Nordic Lights LED lights

Smart Optics and Light Design

When you operate a bulldozer, the worksite is not only in front of you but all around. The light distribution of our work lights eliminates sharp contrasts between dark and bright, giving you a more comfortable working environment with less eye strain. The lack of sharp contrasts is especially beneficial if you are operating a vehicle that produces a lot of vertical vibrations, such as a bulldozer. Most of our work lights are calibrated to a color temperature of around 5000 Kelvin, which has a proven energizing effect on the vehicle operator. Around 5000 Kelvin is ideal for working outdoors. The light is bright enough to keep you energized, yet yellow enough to avoid eye strain.

While the number of lumens is a good indicator of how much light a LED light emits, more lumens doesn’t automatically make one light superior to another. Some manufacturers like to talk a LOT about theoretical lumens, however, the number of lumens does little to no good if the other parts aren’t optimized for the LED chips. That’s why we always measure and openly disclose the operational lumens value, which more closely resembles the actual amount of illumination you will get.

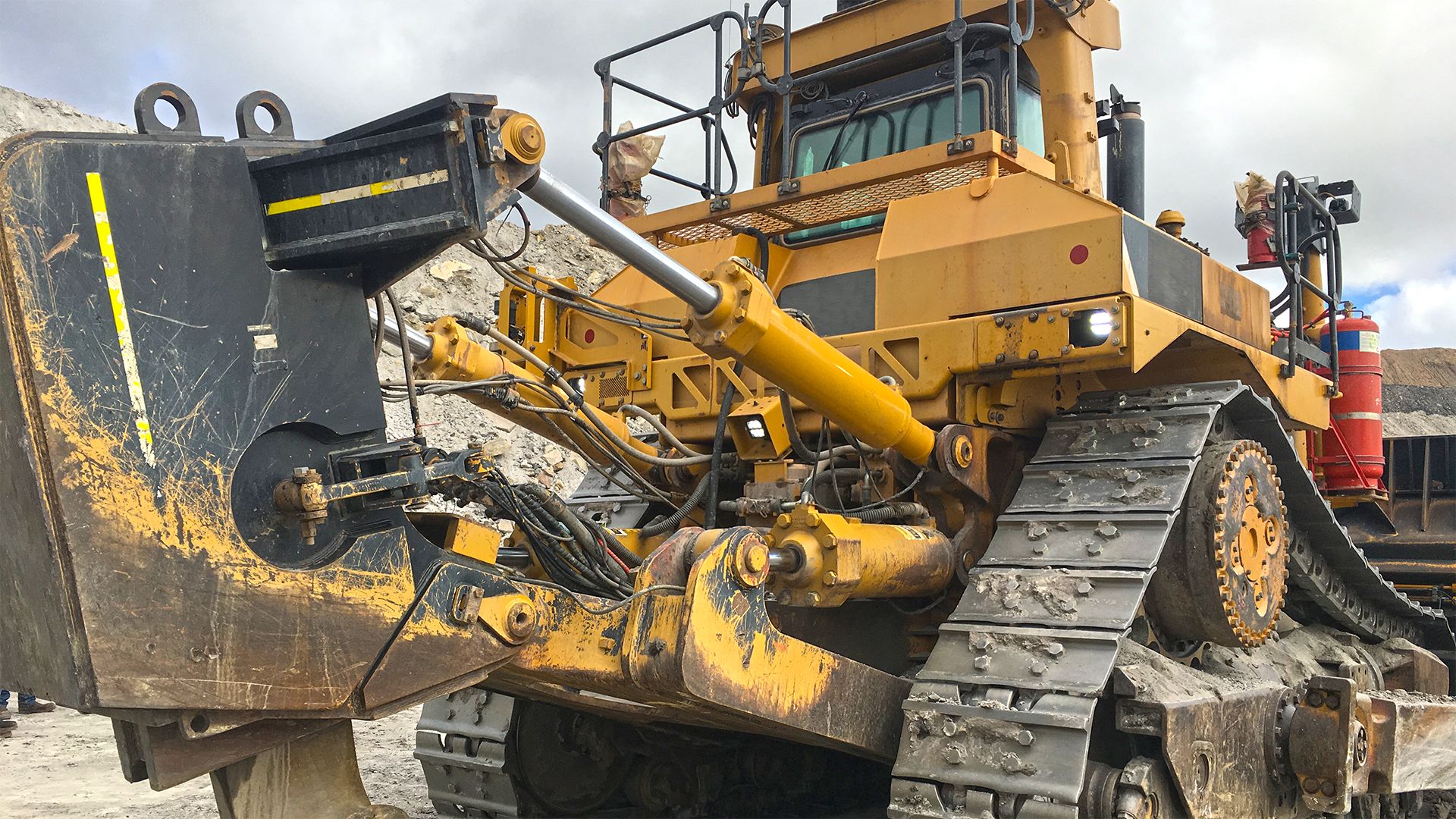

yellow bulldozer equipped with blade and LED lights

Prepared for Extreme Conditions

Whether you work in the scorching heat, or in frigid cold temperatures, you can rely on our LED lights. Rigorously tested in our in-house laboratory, all of our LED bulldozer lights are overheat-protected and remain fully functional from -40°C (-40°F) up to +85°C (185 °F). Essentially, even if the rest of your equipment overheats, your lights will stay on.

Furthermore, your new LED lights are easy to connect via the built-in waterproof, high-quality 2-pin Deutsch DT Connector. When used together with the supplied DT-plug, the system is waterproof. No external moisture will creep into the electronics of the light, which over time would cause it to short-circuit.

Walk with Giants

NORDIC LIGHTS® is the preferred LED light manufacturer for many of the world’s largest manufacturers of bulldozers and other heavy-duty vehicles, including industry leaders such as CaterpillarLiebherrSandvik, and Komatsu. Rest assured that you will always get the most up-to-date and cost-optimized LED lights for your vehicle. As a sign of our consistent quality, in 2020 NORDIC LIGHTS® received its third Caterpillar SQEP (Supplier Quality Excellence Program) gold. This means that Nordic Lights LED lights meet the high standards set by Caterpillar regarding quality, product documentation, and delivery performance. Click the link to find out more about the latest certification regarding NORDIC LIGHTS® LED lights for Caterpillar.


Bulldozer LED Work Lights

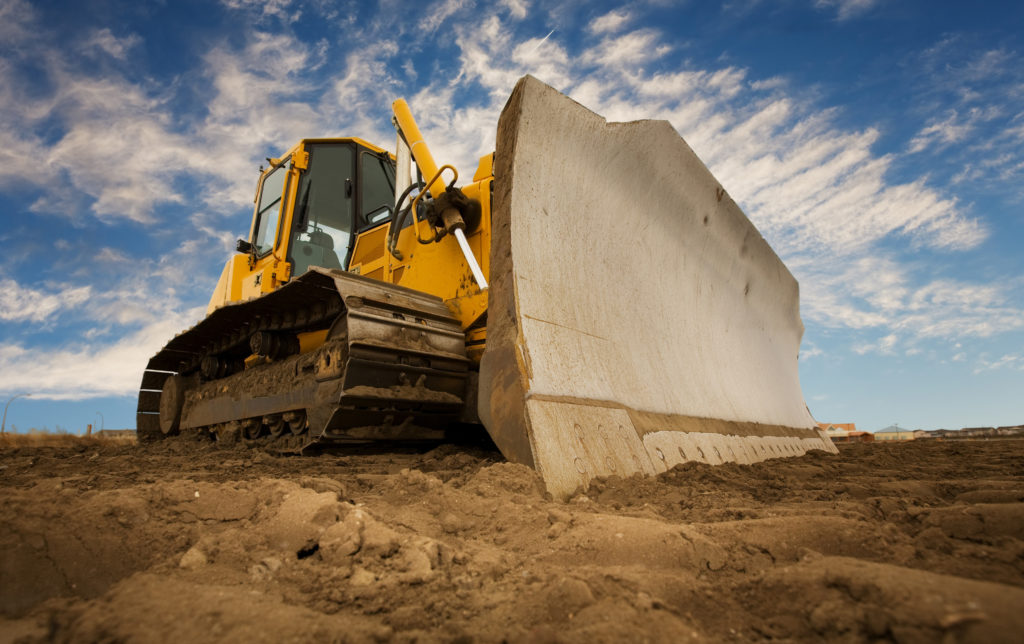

Yellow Bulldozer equipped with Nordic Lights LED lights

Be a Champion

If you’re looking to upgrade from your current lighting, we recommend our heavy-duty PRO Series work lights. The PRO Series lights are a perfect fit for construction tasks and are made in several shapes, the most popular being our square and round alternatives. The light output is up to 4400 lumens, depending on the model. The PRO Series lights are built to last in tough conditions and can handle vibrations of up to 15.3 Grms with ease.




Scorpius PRO

(8)
Explore




Canis PRO

(3)
Explore



For bulldozers, we especially recommend the Scorpius PRO 445 and our durable best-seller, the Scorpius N4402

Master Your Lighting

For the most intense tasks, we recommend the QUAKE Dampened, fully customizable XTR Series. Seeing as the XTR Series can handle vibrations up to 20 Grms and has a maximum lumen output of 7200, there is no wonder we call it “The Unbreakable Master”. We make XTR versions of the Centaurus and the Scorpius light models.




Centaurus XTR

(1)
Explore

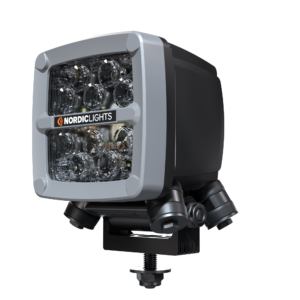

Scorpius XTR

(3)
Explore

Easy Installation

Our bulldozer LED work lights are easily mounted with a bracket. We provide you with the bolt, nut, washer, waterproof connector, as well as the bracket itself. Simple as that!

Which Light and Light Pattern for My Bulldozer?

Picking the correct light pattern is important to get the most out of your LED work light. If you wish to illuminate wider distances, choose the tall and wide Wide Flood. If you need a narrower light distribution, choose a Flood light for maximum light intensity. If you need to light up longer distances, choose High Beam or Pencil beam. If you are in need of near-field illumination, we recommend picking a light with a Diffused light pattern, which has the widest available light distribution.

You can view all the available light patterns for each light under their respective product page. We measure the light distribution of each light pattern in lux, lumens per square meter.

Check out an example of the Scorpius PRO 445 Wide Flood light pattern below.

As you can see, the total amount of 4400 operational lumens is divided into an approximate area of 15×25 meters. The area right directly in front of the light is illuminated by 20 lux (20 lumens per square meter) while the area farthest away is illuminated by 1 lux.

Unlike many work light manufacturers, we measure the light distribution with the sensor parallel to the test plane in order to replicate the actual lighting conditions for the operator. Many manufacturers measure their lights directly towards the test sensor, which gives a better but very unrealistic result.

LED Work Lights for Bulldozers

Our Professional setup for bulldozers consists of 8 Scorpius PRO 445 Wide Flood on the vehicle body, 4 Scorpius XTR N4401 QD Wide Flood directly above the blade, and a Canis PRO N2001 illuminating the area behind the bulldozer. We think the pictures speak for themselves.

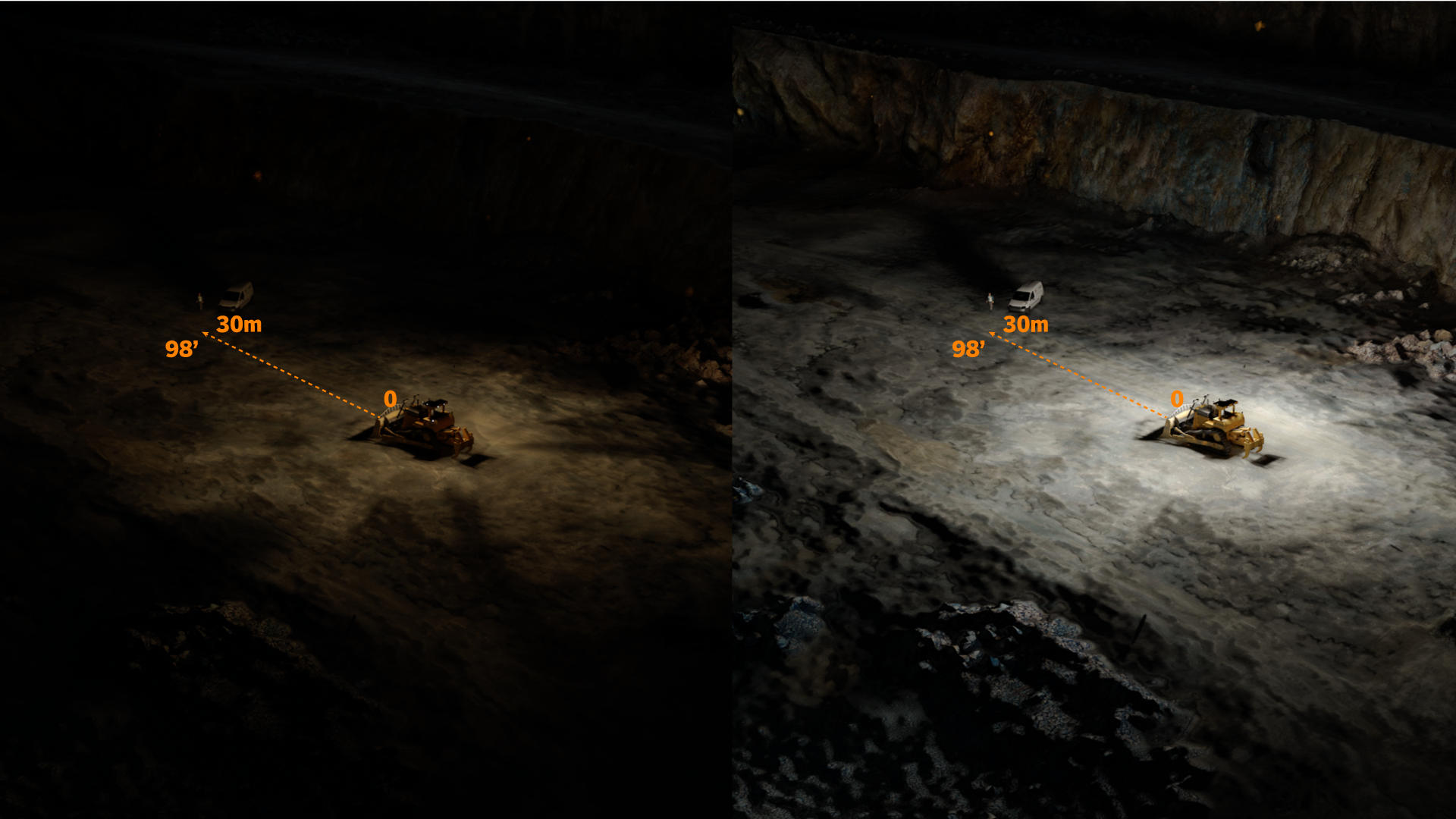

Simulated comparison of Halogen lights vs. Nordic Lights LED lights. The measurement of 30 meters (98 feet) is an approximated value. Click the image to view the full-sized picture.

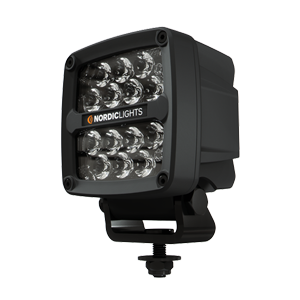

Scorpius PRO 445

Explore




Scorpius N4401 QD

Explore




Canis N2201

Explore



QUAKE Dampening for Extreme Tasks

We want to design and manufacture lights that can be pushed to their very limits and still make it through the workday. That’s why in 2012, the R&D team set out on a mission to create the most durable dampening system on the market. When subjected to shock or vibration, the strategically placed QUAKE dampeners distribute the outside force evenly throughout the dampening system. This enables the work light to withstand even larger shocks and wider ranges of vibrations, resulting in a longer-lasting light and less strain on the vehicle and dampening system itself.

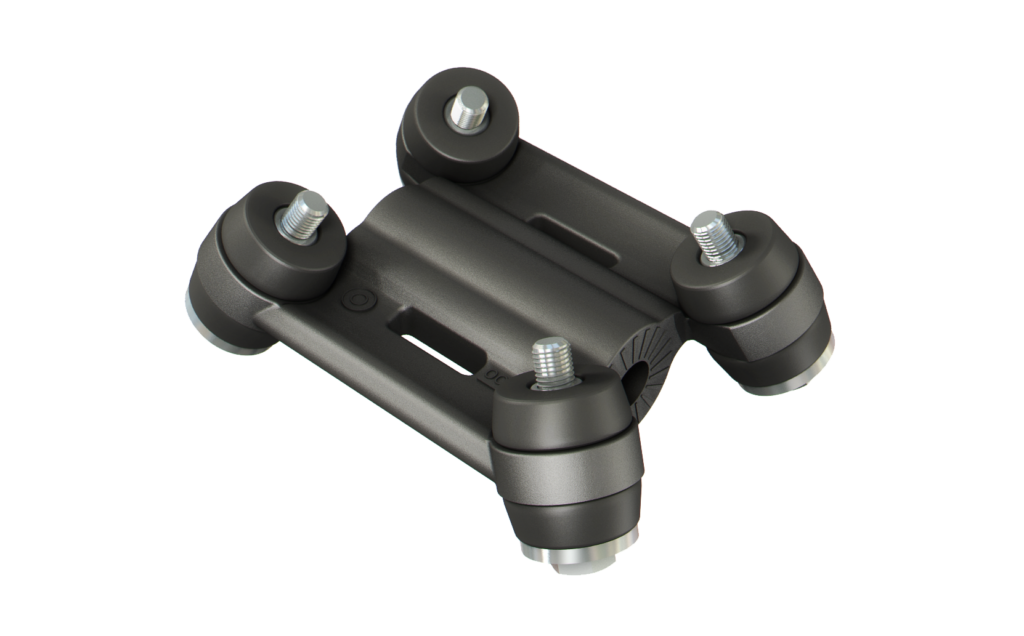

Rendered image of the QUAKE dampening system.

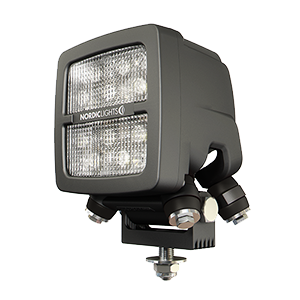

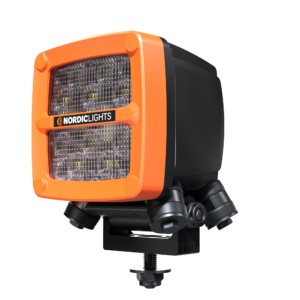

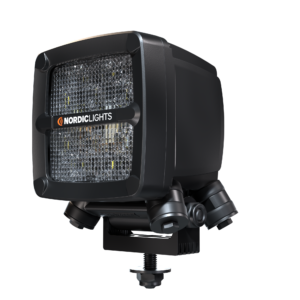

For bulldozers, be sure to check out the QUAKE dampened Scorpius XTR N4401 QD, which is available with a Diffused extra-wide light pattern for maximum horizontal visibility.




Scorpius N4401 QD

(1)
Explore


Problems with Glare?

Unwanted glare is a real hassle for people working around your vehicle, and even yourself. We listened to our customers and developed the Phenom Optics (PH) optical solution. Our Phenom Optics-equipped work lights efficiently illuminate the area in front of you, and thanks to the carefully designed cut-off line, they do not blind people near the vehicle. We currently offer PH versions of our heavy-duty models Scorpius PRO and Canis PRO.






Scorpius PRO 415 PH

Explore




Canis PRO 415 PH

Explore

Glare-free LED lights for tractors forklifts and heavy-duty vehicles


How to Buy

Time for an upgrade? The best way to get a hold of our lights is to contact your local NORDIC LIGHTS® distributor. Find a list of our current distributors here.


OEM Capabilities

Interested in our OEM capabilities? NORDIC LIGHTS® offers tailor-made solutions for vehicle manufacturers. Read all about our OEM capabilities here.


Proudly Designed and Made in Finland

NORDIC LIGHTS® headquarters and main assembly plant is located in the close-knit, entrepreneurial region of Jakobstad, Finland. Since 1992, nearly all of our lights have been assembled, tested and shipped from here.
