SCORPIUS PRO 415 PH

NORDIC LIGHTS® Scorpius PRO 415 Phenom Optics is an extremely useful work light delivering a three-in-one optical solution through our Phenom Optics solution (patent pending). With this work light mounted on your heavy-duty vehicle, you will have accent lighting with soft illumination directed upwards as a guide light for lifting or other operations and efficient task lighting to illuminate the work area both directly in front of and further from the vehicle. Most importantly, people and other vehicles working nearby will not be blinded thanks to the glare-free zone it creates.

Read more
Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Glare-free, will not blind people near the vehicle (PATENT PENDING WO2019073105)
  • Maximum safety and high visibility with light focused on the desired areas
  • Superior electromagnetic compatibility (CISPR 25 Class 5)

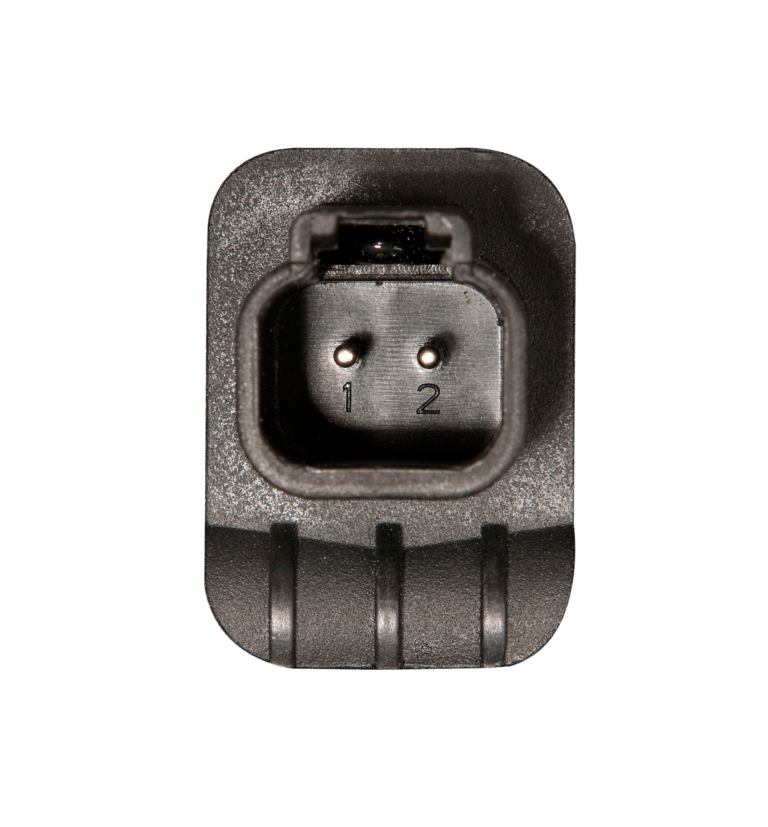

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output1950lm
Operational Lumens Output1500lm
Colour Temperature5000K
Nominal Voltage DC12V, 24V
Input Voltage DC9 - 16V, 18 - 32V
Power Consumption28W
Nominal Current at12V=2.4A, 24V=1.2A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M8
Shock60G
Vibration8Grms 24-2000Hz
LensGlass
Body / HousingAluminum
Weight0.6kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, EN 14982-2, ISO 13766, EN 12895, ISO 11452-2, EN 13309, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)
ElectronicsIsolated

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

Wide Flood: 989-101B
