Load haul dump lights to extend your tunnel vision

NORDIC LIGHTS® LED lights are dustproof,
waterproof, shock- and vibration-resistant,
and have excellent protection against corrosion

Load Haul Dump Lights

In underground mining, the everyday work is done in extremely demanding conditions. The heavy-duty vehicles in mines, including load haul dumps, often bring the sources of light with them to the workplace. When the compact darkness has been beaten there’s still dust and smoke from the drilling or the explosions to penetrate for visibility. In underground mining many areas are restricted for human workforce and therefore hazardous assignments and transports are executed by machines, operated remotely from control rooms. The human eye is often better than cameras when it comes to handling contrasts and shadows. Inadequate lighting will either blind your cameras or just leave them dark. In order to steer and orientate your load haul dump remotely via cameras it’s absolutely necessary to equip your vehicle with the best load haul dump LED lights available on the market. Actually, that is the case, regardless if your load haul dump is manually driven or operated remotely. This is where Nordic Lights come in. We possess extensive knowledge of heavy-duty lighting and vibration technology, gained from creating work lights for the demanding mining industry since 1992.

Our LED lights are developed to perform in demanding conditions. They are all dustproof, waterproof, temperature- and weather-resistant, and have an extraordinarily long lifetime (30,000 to 50,000 hours) to ensure that you can keep your activities up and running for as long as possible. Upgrading to NORDIC LIGHTS® LED lights is one of the smartest and most cost-effective investments you can make.

Get the complete light optimization guide for LHDs:

The ultimate LED lights for your Load Haul Dump

Load haul dumps are extremely rugged, highly maneuverable, and exceptionally productive. NORDIC LIGHTS® LED lights are designed to provide you with the best possible vision and clarity from your load haul dump. Years of testing and R&D have led us to the point that we are comfortable in calling our work lights the best on the market.

Durability for Years

While LED work lights are a step up in price compared to halogen and HID (Xenon) lights, the initial investment pays itself over several times due to the long and hassle-free lifetime of the product. NORDIC LIGHTS® LED lights are virtually maintenance-free and have a lifetime of between 30,000 and 50,000 hours compared to 5000 for HID (Xenon), and 500 for Halogen. That means no more waiting for replacement bulbs or maintenance crews. Extremely expensive downtime can be avoided.

The individual high-quality LEDs are installed on a circuit board, which is then screwed into place inside an aluminum housing. Our lenses are made of different polymers or tempered glass, which have been hand-picked to suit the recommended applications. We test all of our lights before they are shipped out to the customer.

Our comprehensive warranty provides peace of mind that your LED load haul dump lights will continue working for many years without issues. The full details of our warranty policy can be found here.

Smart Optics and Light Design

A typical worksite for a load haul dump is restricted and narrow. Visibility is further limited by dust, released from drilling and explosions and swirled when filling the bucket of the load haul dump. The light distribution of our work lights eliminates sharp contrasts between dark and bright, giving you a more comfortable working environment with less eye strain. Most of our work lights are calibrated to a color temperature of around 5000 Kelvin, which has a proven energizing effect on the vehicle operator. Around 5000 Kelvin is ideal for performing most tasks. The light is bright enough to keep you energized, yet warm enough to avoid eye strain.

While the number of lumens is a good indicator of how much light a LED light emits, more lumens doesn’t automatically make one light superior to another. Some manufacturers focus on theoretical lumens, however, the number of lumens does little to no good if the other parts aren’t optimized for the LED chips. That’s why we always measure and openly disclose the operational lumens value, which more closely resembles the actual amount of illumination you will get.

Prepared for Extreme Conditions

Whether you work in the scorching heat, or in frigid cold temperatures, you can rely on our LED lights. Rigorously tested in our in-house laboratory, all of our LED forestry harvester lights are overheat-protected and remain fully functional from -40°C (-40°F) up to +85°C (185 °F). Essentially, even if the rest of your equipment overheats, your lights will stay on.

Furthermore, your new LED lights are easy to connect via the built-in waterproof, high-quality 2-pin Deutsch DT Connector. When used together with the supplied DT-plug, the system is waterproof. No external moisture will creep into the electronics of the light, which over time would cause it to short-circuit.

Walk with Giants

NORDIC LIGHTS® is the preferred LED light manufacturer for many of the world’s largest manufacturers of load haul dumps and other heavy-duty vehicles, including industry leaders such as CaterpillarLiebherrSandvik, and Komatsu. Rest assured that you will always get the most up-to-date and cost-optimized LED lights for your vehicle.


Load Haul Dump LED Work Lights

Ready to Step It Up?

If you’re looking for a first upgrade to LED from Halogen or HID, we recommend our no-frills GO Series work lights, also known as the Step-It-Up series. The Scorpius GO 420 (pictured below) is part of our professional upgrade package for Load Haul Dumps. The operational lumens output for the Scorpius GO 420 is 1800 lumens. The GO Series work lights are all dimmable, enabling you to customize the amount of emitted light to your liking. They also handle tough conditions and intense vibrations with ease.




Scorpius GO 420

Explore

Be a Champion

Want to join the big leagues? If so, we recommend getting your hands on our heavy-duty PRO Series work lights. The PRO Series lights are a perfect fit for construction tasks and are made in several shapes, the most popular being our square alternatives. The light output is up to 4400 lumens, depending on the model. The PRO Series lights are built to last in tough conditions and can handle vibrations of up to 15.3 Grms with ease. For Load Haul Dumps, we especially recommend the Scorpius N4402, which has a wide range of Light Patterns to choose from.

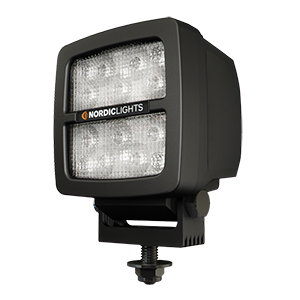

Scorpius N4402

Explore

Easy Installation

Our forestry harvester LED work lights are easily mounted with a bracket. We provide you with the bolt, nut, washer, waterproof connector, as well as the bracket itself. Simple as that!

Which Light and Light Pattern for My Load Haul Dump?

Picking the correct light pattern is important to get the most out of your LED work light. If you wish to illuminate wider distances, choose the tall and wide Wide Flood. If you need a narrower light distribution, choose a Flood light for maximum light intensity. If you need to light up longer distances, choose High Beam or Pencil beam. If you are in need of near-field illumination, we recommend picking a light with a Diffused light pattern, which has the widest available light distribution.

You can view all the available light patterns for each light under their respective product page. We measure the light distribution of each light pattern in lux, lumens per square meter.

Check out an example of the Scorpius PRO 445 Wide Flood light pattern below.

As you can see, the total amount of 4400 operational lumens is divided into an approximate area of 15×25 meters. The area directly in front of the light is illuminated by 20 lux (20 lumens per square meter) while the area farthest away is illuminated by 1 lux.

Unlike many work light manufacturers, we measure the light distribution with the sensor parallel to the test plane in order to replicate the actual lighting conditions for the operator. Many manufacturers measure their lights directly towards the test sensor, which gives a better but very unrealistic result.

Light Setup Recommendations for Load Haul Dumps

Nordic Lights provide you with simulation examples to guide you to the perfect combination of light models from our range and also the recommended placement and the quantity of each model. This simulation can be used as a lighting guideline for load haul dumps. Key dimensions of the model used in the simulations are:

• Weight ~55 000 kg
• Height to the top of the cab 2200-3200mm

Light Setup: Professional
Load Haul Dump Lights Simulation

Our professional work light setup for Load Haul Dumps includes 11 Scorpius N4402 as well as 3 Scorpius GO 420 strategically placed on the Load Haul Dump.

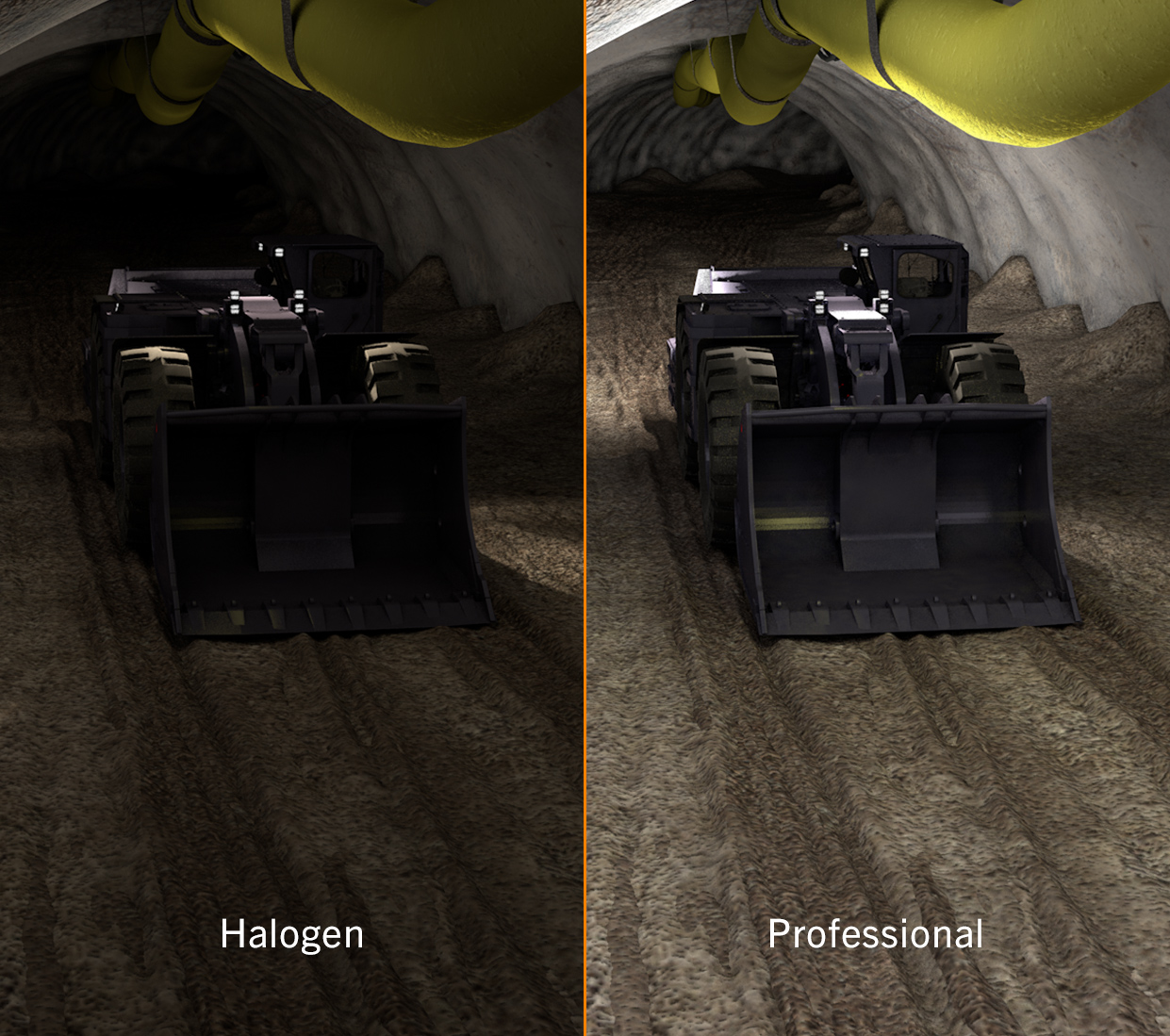

In the simulation below, you can compare a setup with standard halogen Wide Flood lights, versus our Nordic Lights Professional Upgrade Package.

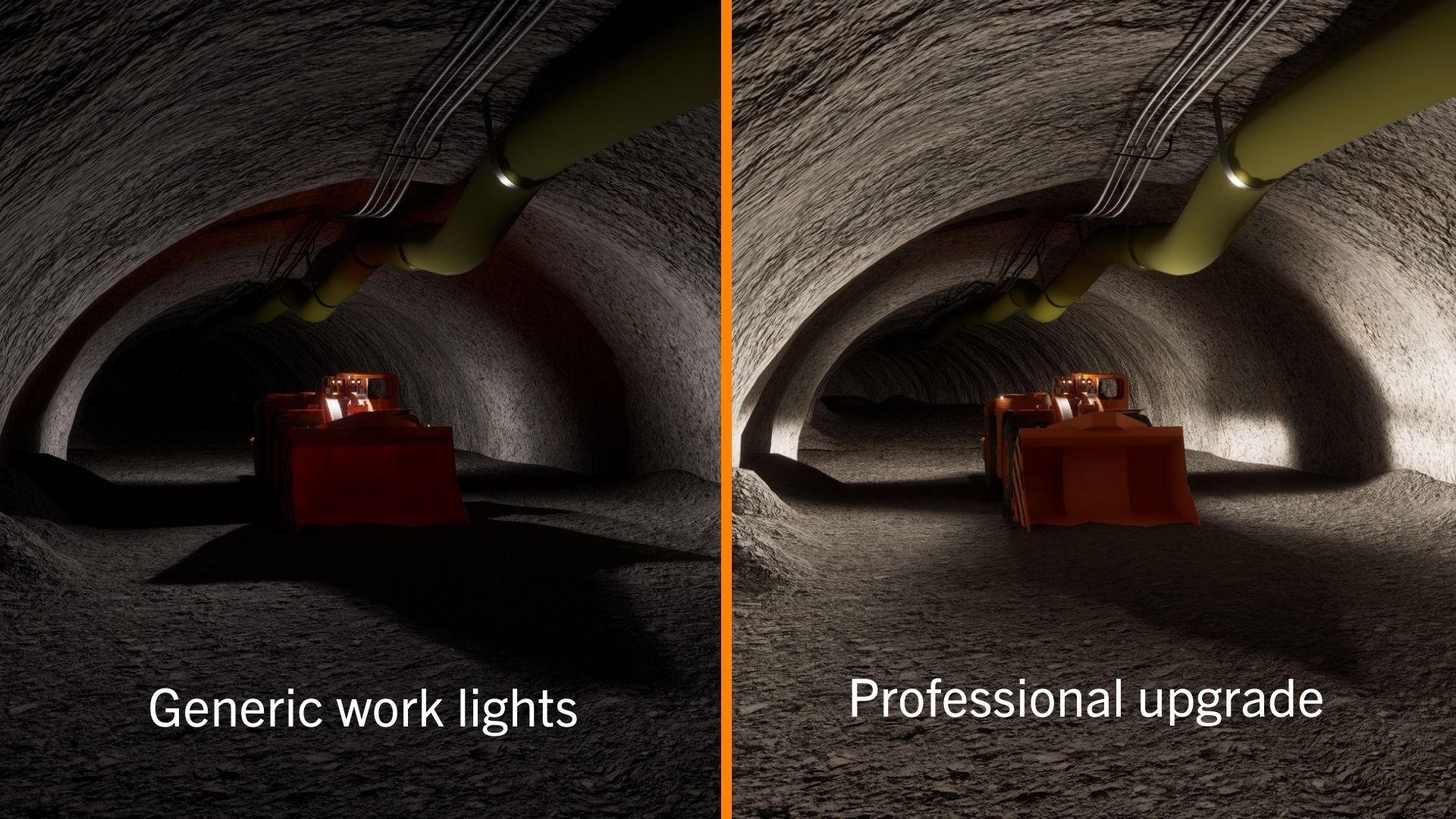

Simulated comparison of Nordic LED lights vs Halogen lights

Simulation picture of Halogen setup versus Nordic Lights Professional setups for Load Haul Dumps. Please click the image to view the full-sized picture.

Psst! Want to view the exact angles and positioning of the lights? Download our light optimization guide for Load Haul Dumps!


Problems with Glare?

Watch the video on Youtube here

Unwanted glare is a real hassle for people working around your vehicle, and even yourself. We listened to our customers and developed the Phenom Optics (PH) optical solution. Our Phenom Optics-equipped work lights efficiently illuminate the area in front of you, and thanks to the carefully designed cut-off line, they do not blind people near the vehicle. We currently offer PH versions of our heavy-duty models Scorpius PRO and Canis PRO.


Scorpius PRO 415 PH

Explore


Canis PRO 415 PH

Explore

Glare-free LED lights for tractors forklifts and heavy-duty vehicles


How to Buy

Time for an upgrade? The best way to get a hold of our lights is to contact your local NORDIC LIGHTS® distributor. Find a list of our current distributors here.


OEM Capabilities

Interested in our OEM capabilities? NORDIC LIGHTS® offers tailor-made solutions for vehicle manufacturers. Read all about our OEM capabilities here.


Proudly Designed and Made in Finland

NORDIC LIGHTS® headquarters and main assembly plant is located in the close-knit, entrepreneurial region of Jakobstad, Finland. Since 1992, nearly all of our lights have been assembled, tested and shipped from here.
