Mining

Dump truck lights for safety and efficiency

NORDIC LIGHTS® LED lights are dustproof,
waterproof, shock- and vibration-resistant,
and have excellent protection against corrosion

Dump Truck LED Lights

There are heavy-duty vehicles and then there are dump trucks. Constructed to maximize load capacity, they swallow enormous amounts of material and then transport it from A to B. The largest models load up to 500 tonnes of material, still moving in speeds of up to 65 km/h. A heavy vehicle in high speed means a long breaking distance. Mining is a 24/7 business so much of the work is done during the dark hours. Autonomous dump trucks are currently finding their way to the market, but still most dump truck are driven manually, with the driver sitting several meters above the ground. To maintain a high safety level at the mining site you need to equip your dump truck with the best LED lights available. Naturally you need to light up the road efficiently around your dump truck, but blinding lights can cause accidents and health problems. For safety reasons and efficiency, the lights have to be designed to consider other vehicles and staff in the mining area. LED lights from Nordic Lights are designed to provide powerful illumination without causing blinding effects.

Our LED lights are developed to perform in demanding conditions. They are all dustproof, waterproof, temperature- and weather-resistant, and have an extraordinarily long lifetime (30,000 to 50,000 hours) to ensure that you can keep your activities up and running for as long as possible. Upgrading to NORDIC LIGHTS® LED lights is one of the smartest and most cost-effective investments you can make.

Get the complete light optimization guide for dump trucks:

The Ultimate LED Lights for Your Dump Truck

Dump trucks come in different sizes and models, with loading capacity ranging from around 40 tonnes up to 500 tonnes. NORDIC LIGHTS® LED lights are designed to provide you with the best possible vision and clarity from your dump truck. Years of testing and R&D have led us to the point that we are comfortable in calling our work lights the best on the market.

Durability for Years

While LED work lights are a step up in price compared to halogen and HID (Xenon) lights, the initial investment pays itself over several times due to the long and hassle-free lifetime of the product. NORDIC LIGHTS® LED lights are virtually maintenance-free and have a lifetime of between 30,000 and 50,000 hours compared to 5000 for HID (Xenon), and 500 for Halogen. That means no more waiting for replacement bulbs or maintenance crews.

The individual high-quality LEDs are installed on a circuit board, which is then screwed into place inside an aluminum housing. Our lenses are made of different polymers or tempered glass, which have been hand-picked to suit the recommended applications. We test all of our lights before they are shipped out to the customer.

Our comprehensive warranty provides peace of mind that your LED dump truck lights will continue working for many years without issues. The full details of our warranty policy can be found here.

Smart Optics and Light Design

When you operate your dump truck, the worksite is not only in front of you but all around. The light distribution of our work lights eliminates sharp contrasts between dark and bright, giving you a more comfortable working environment with less eye strain. Most of our work lights are calibrated to a color temperature of around 5000 Kelvin, which has a proven energizing effect on the vehicle operator. Around 5000 Kelvin is ideal for working outdoors. The light is bright enough to keep you energized, yet yellow enough to avoid eye strain.

While the number of lumens is a good indicator of how much light a LED light emits, more lumens doesn’t automatically make one light superior to another. Some manufacturers focus on theoretical lumens, however, the number of lumens does little to no good if the other parts aren’t optimized for the LED chips. That’s why we always measure and openly disclose the operational lumens value, which more closely resembles the actual amount of illumination you will get.

Prepared for Extreme Conditions

Whether you work in the scorching heat, or in frigid cold temperatures, you can rely on our LED lights. Rigorously tested in our in-house laboratory, all of our LED dump truck lights are overheat-protected and remain fully functional from -40°C (-40°F) up to +85°C (185 °F). Essentially, even if the rest of your equipment overheats, your lights will stay on.

Furthermore, your new LED lights are easy to connect via the built-in waterproof, high-quality 2-pin Deutsch DT Connector. When used together with the supplied DT-plug, the system is waterproof. No external moisture will creep into the electronics of the light, which over time would cause it to short-circuit.

Walk with Giants

NORDIC LIGHTS® is the preferred LED light manufacturer for many of the world’s largest manufacturers of load haul dumps and other heavy-duty vehicles, including industry leaders such as CaterpillarLiebherrSandvik, and Komatsu. Rest assured that you will always get the most up-to-date and cost-optimized LED lights for your vehicle.

Dump Truck LED Work Lights

Be a Champion

If you’re looking to upgrade from your current lighting, we recommend our heavy-duty PRO Series work lights. The PRO Series lights are a perfect fit for mining tasks and are made in several shapes, the most popular being our square and round alternatives. The light output is up to 4400 lumens, depending on the model. The PRO Series lights are built to last in tough conditions and can handle vibrations of up to 15.3 Grms with ease.


Scorpius PRO

Explore

Easy Installation

Our dump truck LED work lights are easily mounted with a bracket. We provide you with the bolt, nut, washer, waterproof connector, as well as the bracket itself. Simple as that!

Which Light and Light Pattern for My Dump Truck?

Picking the correct light pattern is important to get the most out of your LED work light. If you wish to illuminate wider distances, choose the tall and wide Wide Flood. If you need a narrower light distribution, choose a Flood light for maximum light intensity. If you need to light up longer distances, choose High Beam or Pencil beam. If you are in need of near-field illumination, we recommend picking a light with a Diffused light pattern, which has the widest available light distribution.

You can view all the available light patterns for each light under their respective product page. We measure the light distribution of each light pattern in lux, lumens per square meter.

Check out an example of the Scorpius PRO 445 Wide Flood light pattern below.

As you can see, the total amount of 4400 operational lumens is divided into an approximate area of 15×25 meters. The area directly in front of the light is illuminated by 20 lux (20 lumens per square meter) while the area farthest away is illuminated by 1 lux.


Light Setup Recommendations for Dump Trucks

Nordic Lights provide you with simulation examples to guide you to the perfect combination of light models from our range and also the recommended placement and the quantity of each model. This simulation can be used as a lighting guideline for Dump Trucks. Key dimensions of the model used in the simulations are:

  • Weight ~>90 000 kg
  • Height to the top of the cab 500-600 cm

Unlike many work light manufacturers, we measure the light distribution with the sensor parallel to the test plane in order to replicate the actual lighting conditions for the operator. Many manufacturers measure their lights directly towards the test sensor, which gives a better but very unrealistic result.

Our recommended Professional setup for Dump Trucks includes 10 Scorpius N4408, 2 Scorpius N4402, and 4 Scorpius PRO 415 PH strategically placed on the body of the dump truck.




Scorpius N4408

Explore




Scorpius N4402

Explore




Scorpius PRO 415 PH

Explore

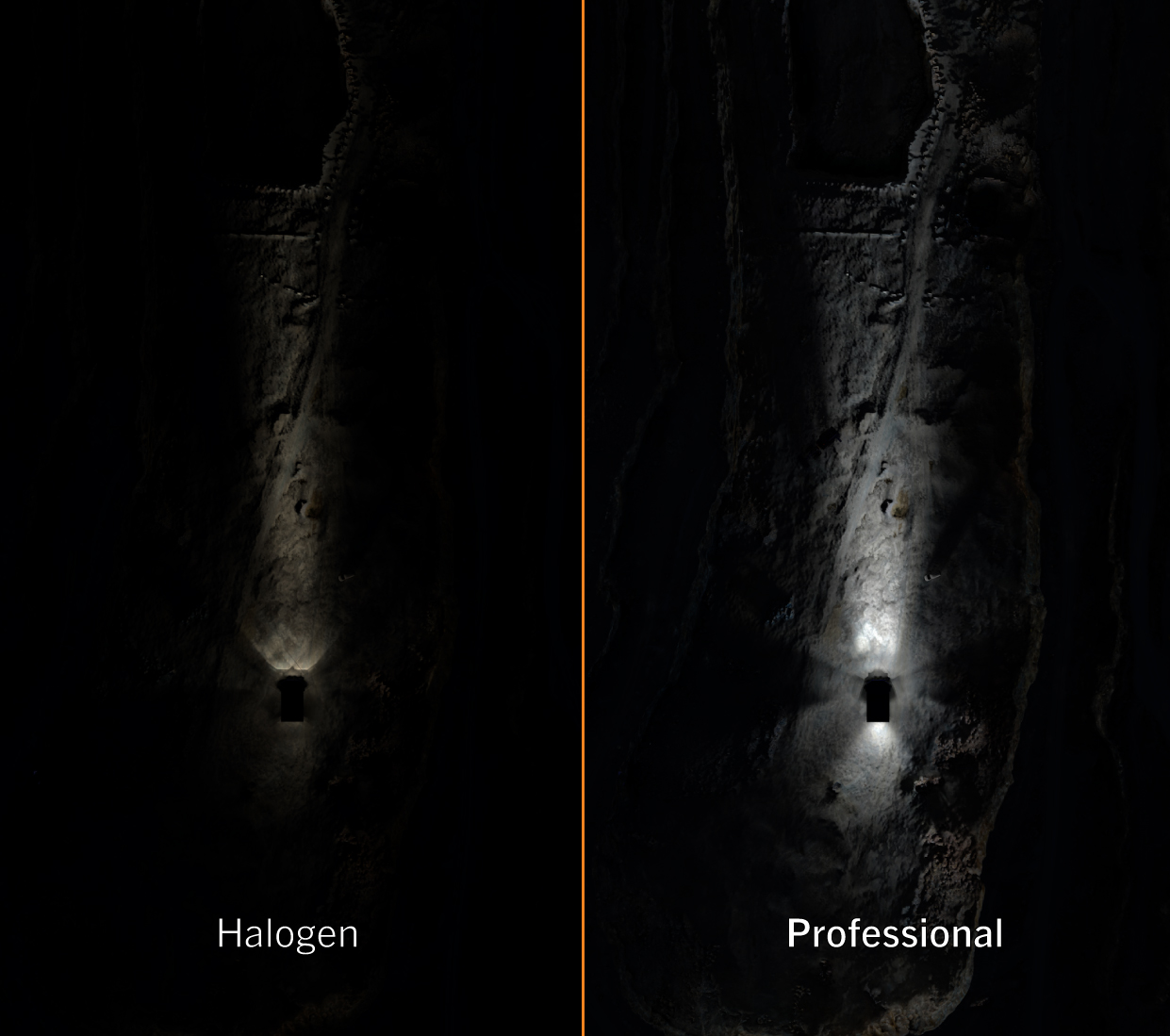

In the simulation below, you can compare a setup with standard halogen Wide Flood lights, versus our Nordic Lights Professional upgrade package.

Simulation picture of Halogen Wide Flood lights versus Nordic Lights Professional setup for Dump Trucks. Please click the image to view the full-sized picture.

Get the complete light optimization guide for dump trucks:

Dump Truck Tail Lights

Looking for tail lights for dump trucks?

Check out Dorado!

Problems with Glare?

Watch the video on Youtube here

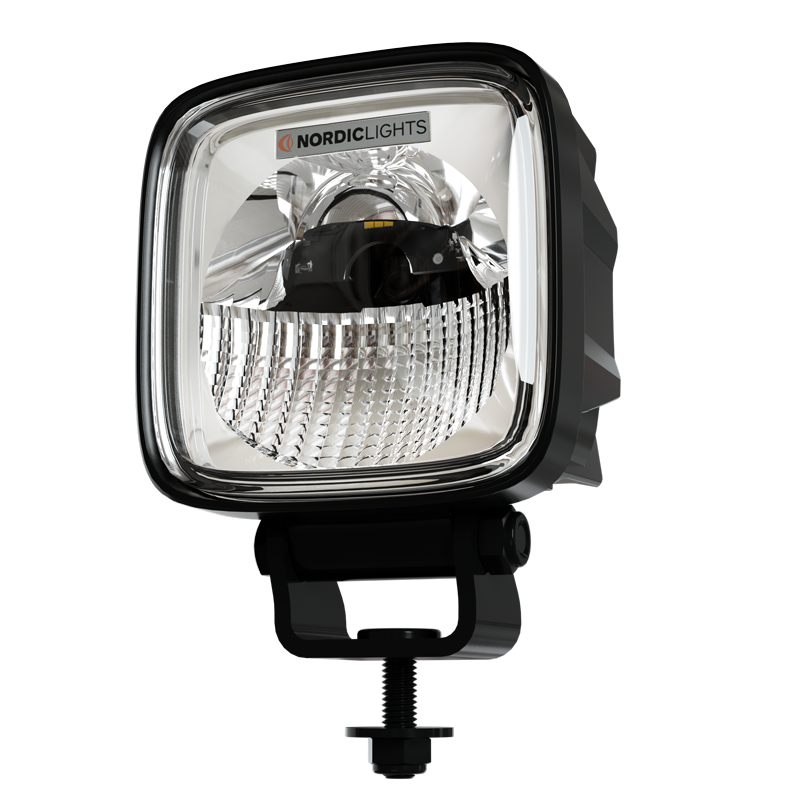

Unwanted glare is a real hassle for people working around your vehicle, and even yourself. We listened to our customers and developed the Phenom Optics (PH) optical solution. Our Phenom Optics-equipped work lights efficiently illuminate the area in front of you, and thanks to the carefully designed cut-off line, they do not blind people near the vehicle. We currently offer PH versions of our heavy-duty models Scorpius PRO and Canis PRO.






Scorpius PRO 415 PH

Explore




Canis PRO 415 PH

Explore

Glare-free LED lights for tractors forklifts and heavy-duty vehicles

How to Buy

Time for an upgrade? The best way to get a hold of our LED lights for dump trucks is to contact your local NORDIC LIGHTS® distributor. Find a list of our current distributors here.


OEM Capabilities

Interested in our OEM capabilities? NORDIC LIGHTS® offers tailor-made solutions for vehicle manufacturers. Read all about our OEM capabilities here.


Proudly Designed and Made in Finland

NORDIC LIGHTS® headquarters and main assembly plant is located in the close-knit, entrepreneurial region of Jakobstad, Finland. Since 1992, nearly all of our lights have been assembled, tested and shipped from here.

Get the complete light optimization guide for dump trucks:

 Read also about our load haul dump LED lights and our mining lights.
