SCORPIUS PRO 445

NORDIC LIGHTS® Scorpius PRO 445 is the newest addition to our product range. This is the next-generation Scorpius work light with improved design, the very latest in LED technology, and improved color rendering. For your safety, this light has superior electromagnetic compatibility (CISPR 25 Class 5). The Scorpius PRO 445 offers better mechanical properties, is lighter in weight, and has a new lens material with exceptional heat tolerance. It has an asymmetric wide flood feature and a light output of 4400 lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration and shock resistant
  • Operational lumens output: 4400lm
  • For harsh conditions

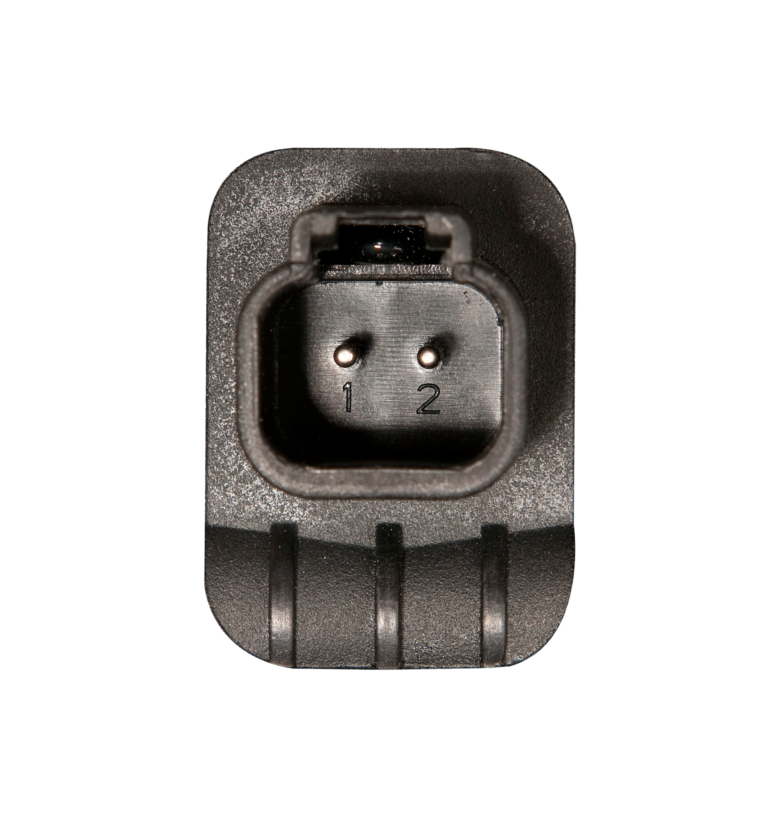

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output7000lm
Operational Lumens Output4400lm
Colour Temperature5000K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption50W
Nominal Current at24V=2.1A, 12V=4.2A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensGrilamid® (registered trademark of EMS-GRIVORY)
Body / HousingAluminum
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)
ElectronicsIsolated

Light Patterns

Click to zoom

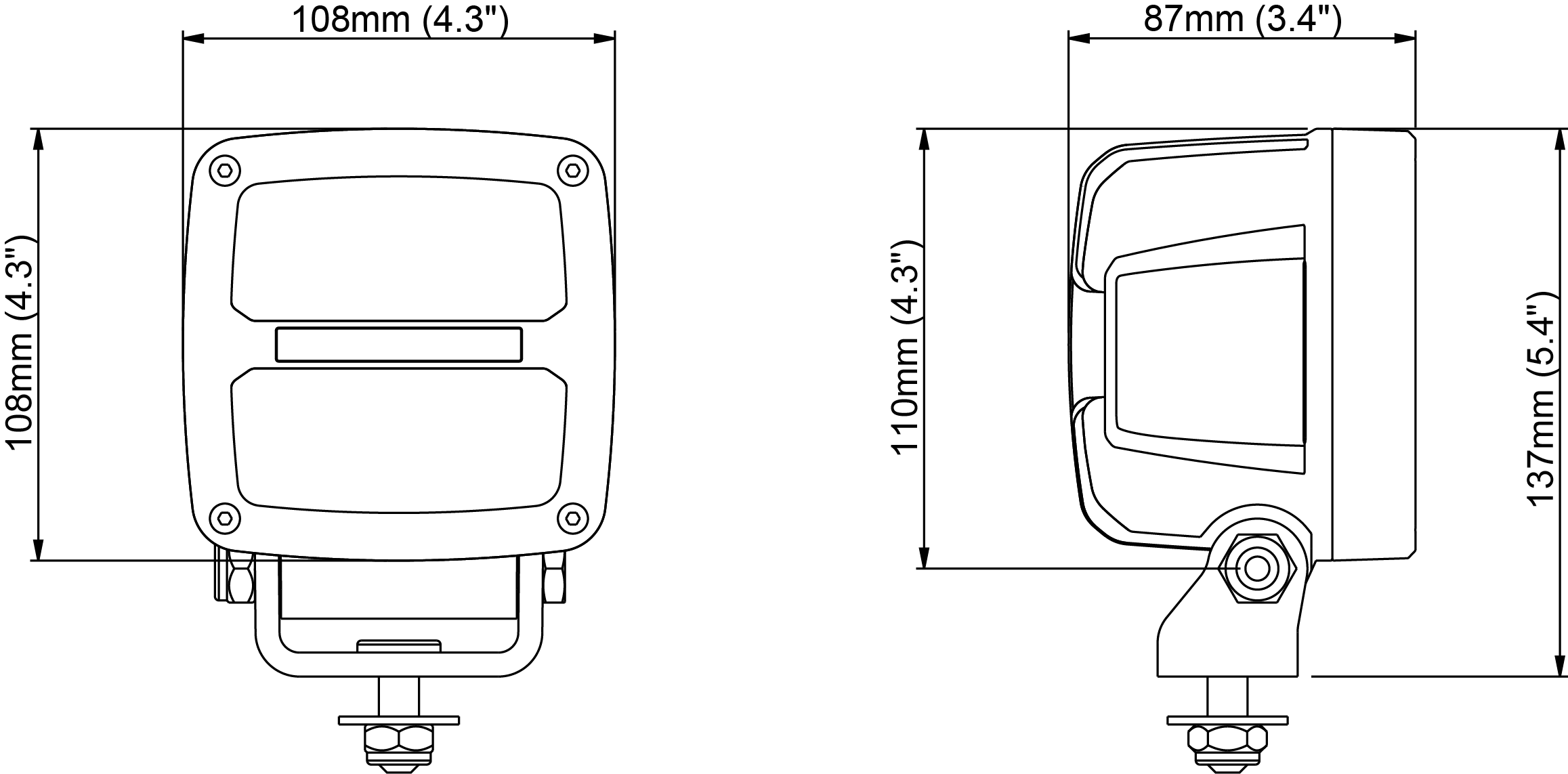

Drawings

Click to zoom

Part Numbers

Flood: 984-701B
High Beam: 984-704B
Wide Flood Asymmetric: 984-703B
Wide Flood Symmetric: 984-702B
