SCORPIUS N4402 WARM

Retaining all the benefits of the original N4402, further optimized to work even better in visually demanding circumstances – the Scorpius N4402 WARM arrives to impress. This heavy-duty work light has a color temperature of 2700K, making it a natural choice for those accustomed to working in warmer lighting. For comparison’s sake, most of our other lights come in at 5000K. Thanks to the lower-than-usual color temperature, users of this light will have a clear advantage when working in visually demanding circumstances such as rain, dust, fog, or snow. Made to withstand tough conditions and available in four different light patterns, the Scorpius N4402 WARM is perfect for mining, construction, and material handling, and comes in at 3600lm.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration and shock resistant
  • Operational lumens output: 3600lm
  • For harsh conditions

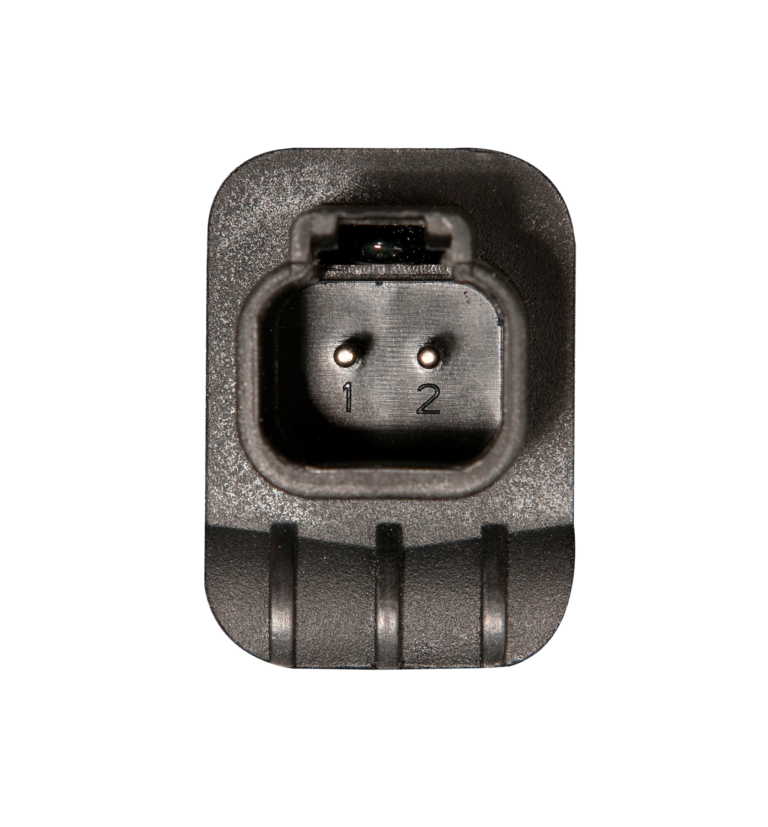

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output5700lm
Operational Lumens Output3600lm
Colour Temperature2700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption50W
Nominal Current at24V=2.0A, 12V=3.9A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC / Glass
Body / HousingAluminum
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Full Power -40°C... +50°C)

Light Patterns

Click to zoom

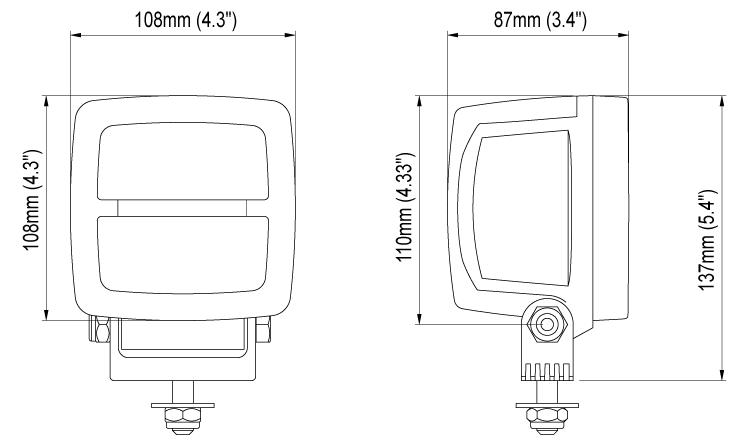

Drawings

Click to zoom

Part Numbers

Wide Flood: 984-1109
Low Beam: 984-1126
High Beam: 984-1119
