SCORPIUS N4404

NORDIC LIGHTS® Scorpius N4404 work light offers strong illumination with an operational lumens output of 3000 lm. This LED work light features all characteristics expected of a high-end heavy-duty work light, offering long lifetime and high operational safety with minimum maintenance. The Scorpius N4404 is suitable for harsh conditions and a wide range of applications.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration- and shockresistant
  • Operational lumens output: 3000lm
  • For harsh conditions

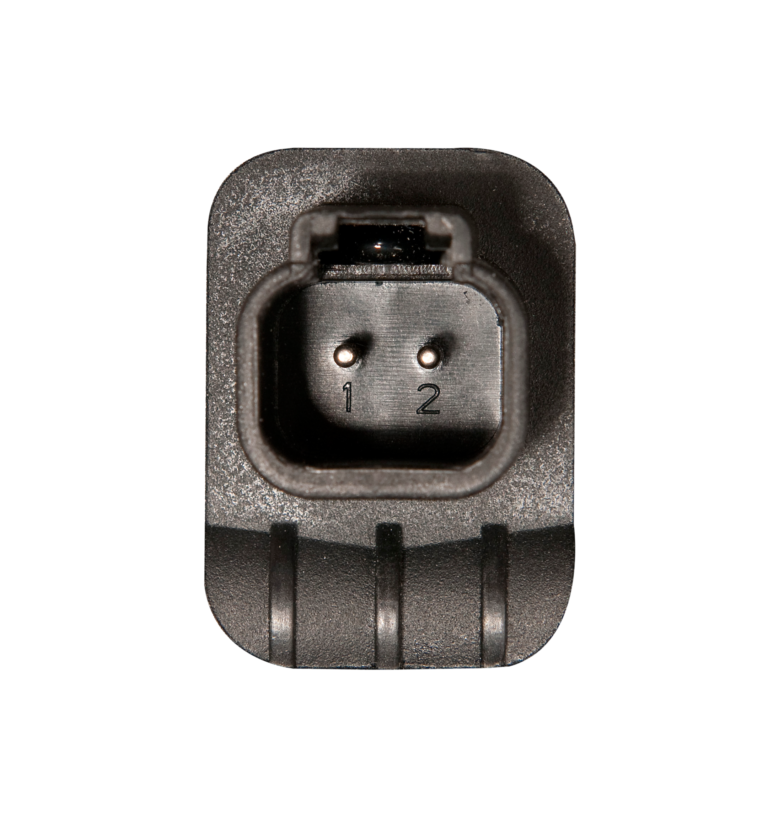

Connectors

Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output4800lm
Operational Lumens Output3000lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption45W
Nominal Current at24V=1.9A, 12V=3.8A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC
Body / HousingAluminium
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 3, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

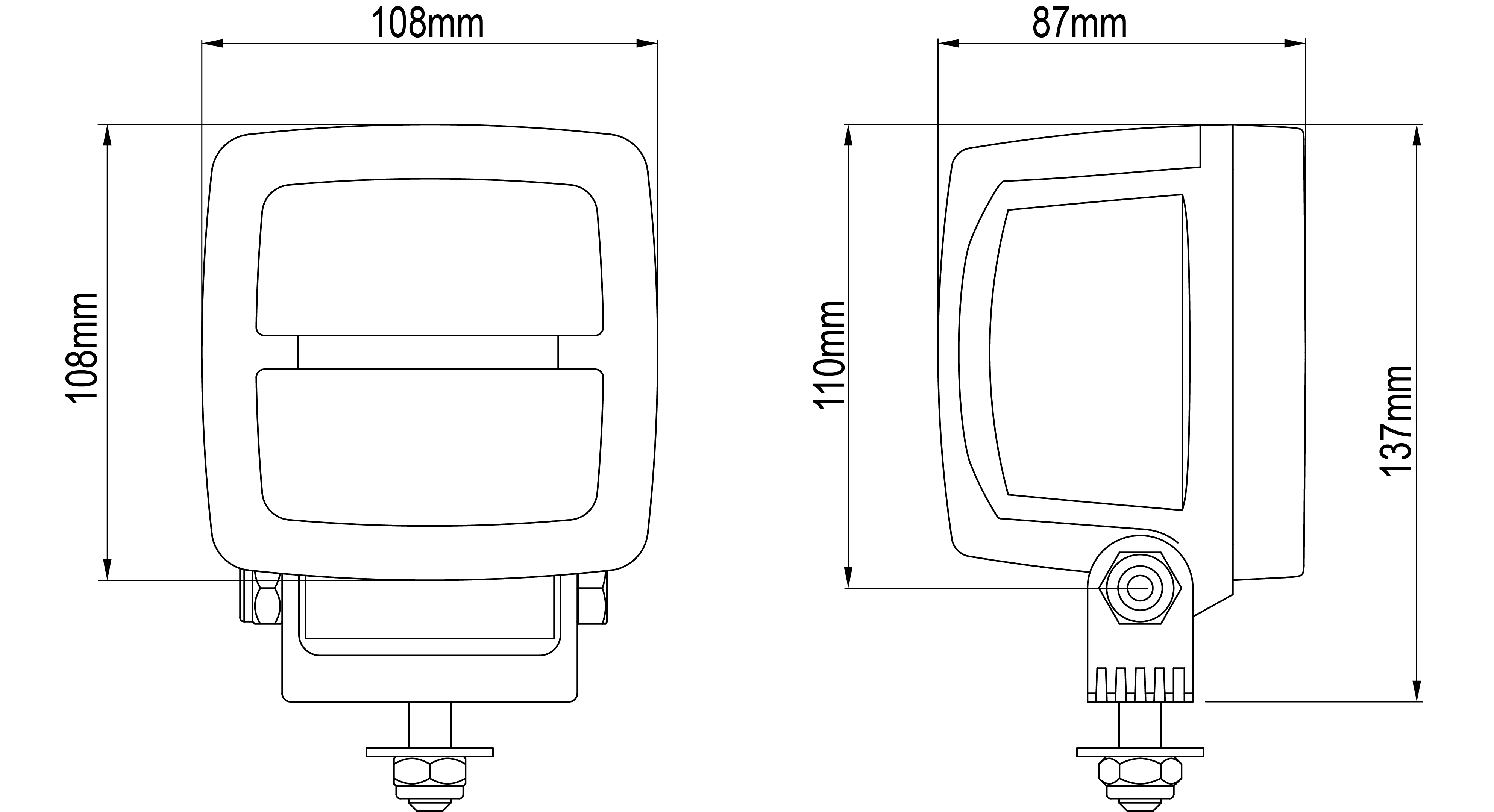

Drawings

Click to zoom

Part Numbers

High Beam: 984-308
Flood: 984-306
Wide Flood: 984-302
Low Beam: 984-307
