SCORPIUS N4410

NORDIC LIGHTS® Scorpius N4410 work light offers 41% improved lumens/Watt efficacy compared to its original predecessor. This LED work light is dimmable and offers long lifetime and high operational safety with minimum maintenance. The Scorpius N4410 is suitable for harsh conditions and a wide range of applications.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration- and shockresistant
  • Operational lumens output: 2000lm
  • For extremely harsh conditions
  • Dimmable

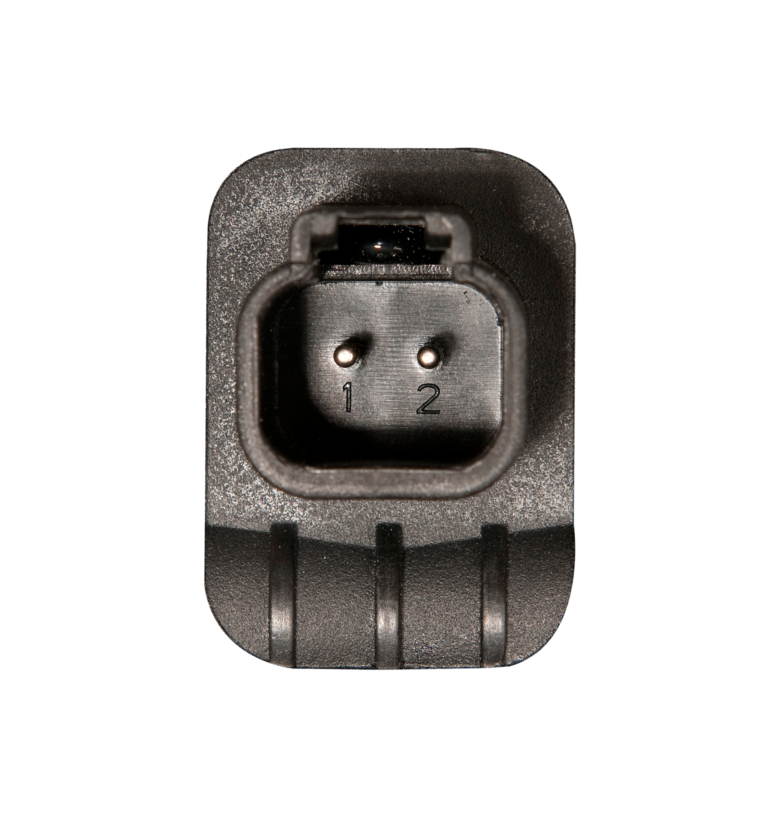

Connectors

Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output3200lm
Operational Lumens Output2000lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption40W
Nominal Current at24V=1.7A, 12V=3.4A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC
Body / HousingAluminium
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

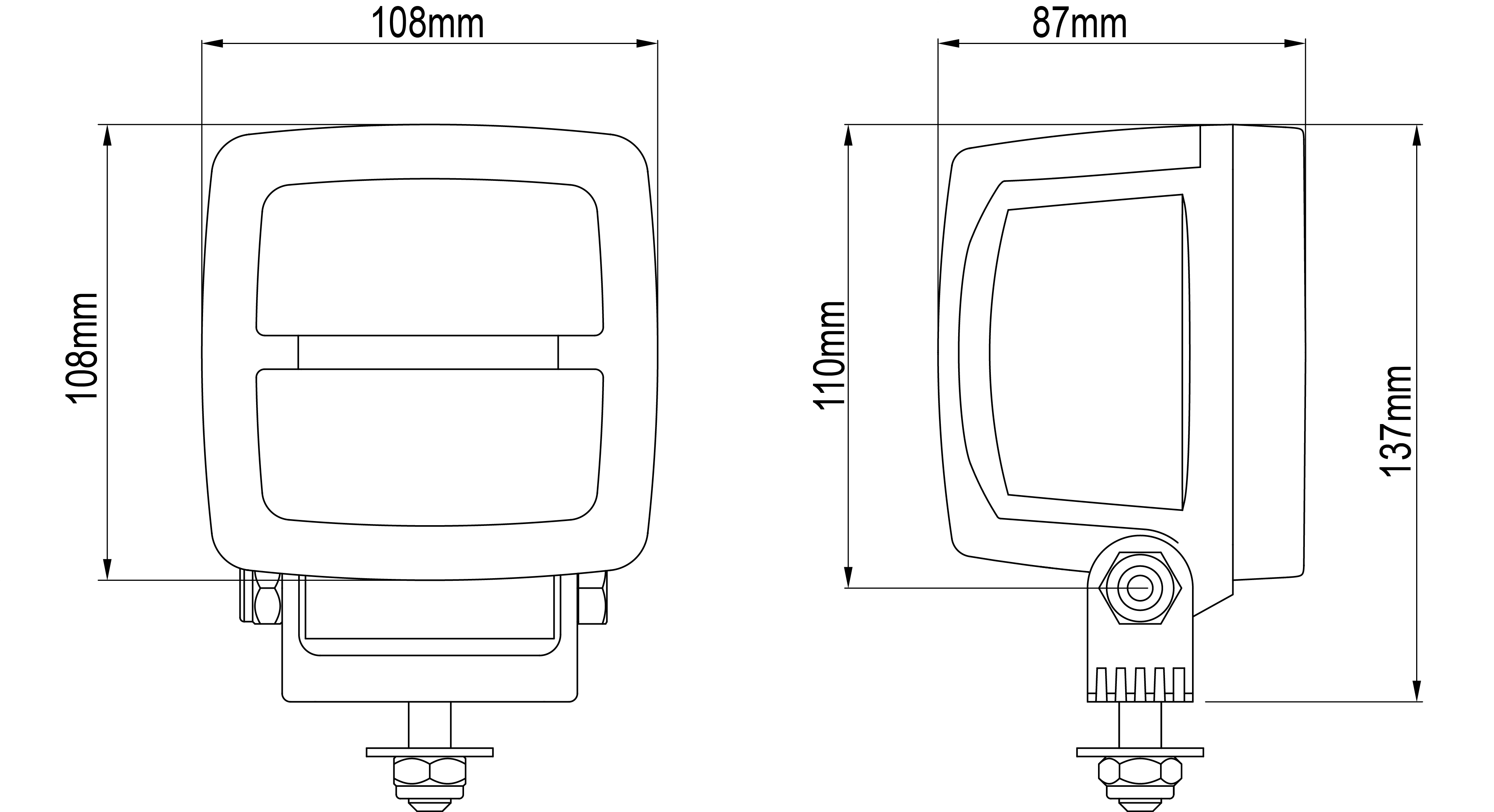

Drawings

Click to zoom

Part Numbers

High Beam: 984-607
Flood: 984-606
Wide Flood: 984-605
Low Beam: 984-608
