SP430 - NORDIC LIGHTS® - Nordic Lights Ltd.

SCORPIUS PRO 430

NORDIC LIGHTS® Scorpius PRO 430 is the little brother of the Scorpius PRO 445. This heavy-duty work light retains all the excellent features of its sibling, while coming in at a comparably lower 3000 lumens. You get the same superb craftmanship and attention to detail, including the very latest in LED technology. For your safety, this light has superior electromagnetic compatibility (CISPR 25 Class 5). The Scorpius PRO 430 offers unbeatable mechanical properties and optical clarity. It is available in four different light patterns, including an asymmetric wide flood.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration and shock resistant
  • Operational lumens output: 3000lm
  • For harsh conditions

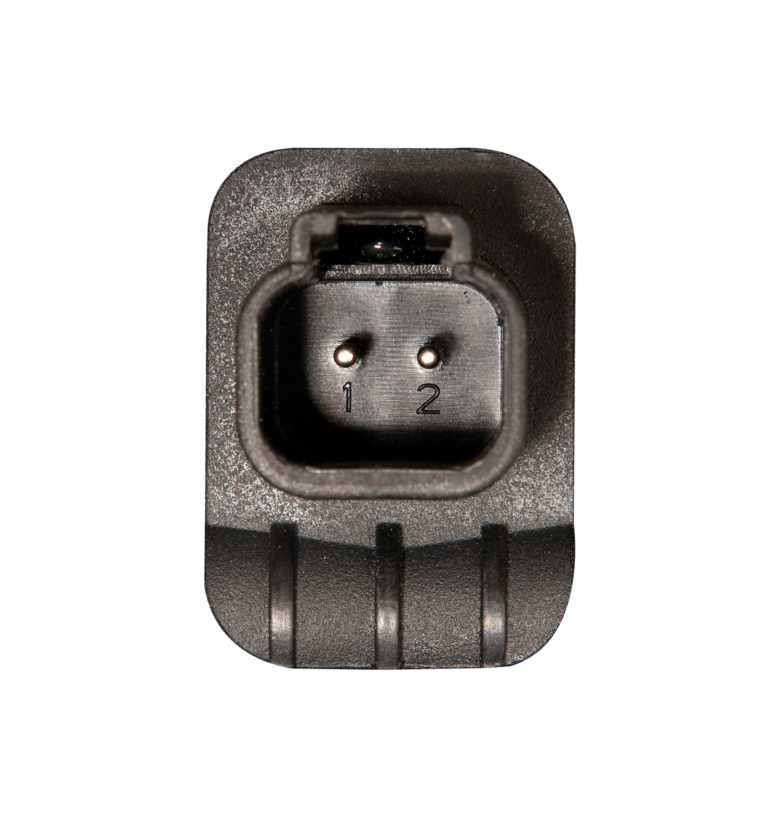

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output4800lm
Operational Lumens Output3000lm
Colour Temperature5000K
Nominal Voltage DC12V, 24V
Input Voltage DC9 - 16V, 18 - 32V
Power Consumption33W
Nominal Current at24V=1.4A, 12V=2.8A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensGrilamid® (registered trademark of EMS-GRIVORY)
Body / HousingAluminium
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Full Power -40°C... +50°C)
ElectronicsIsolated

Light Patterns

Click to zoom

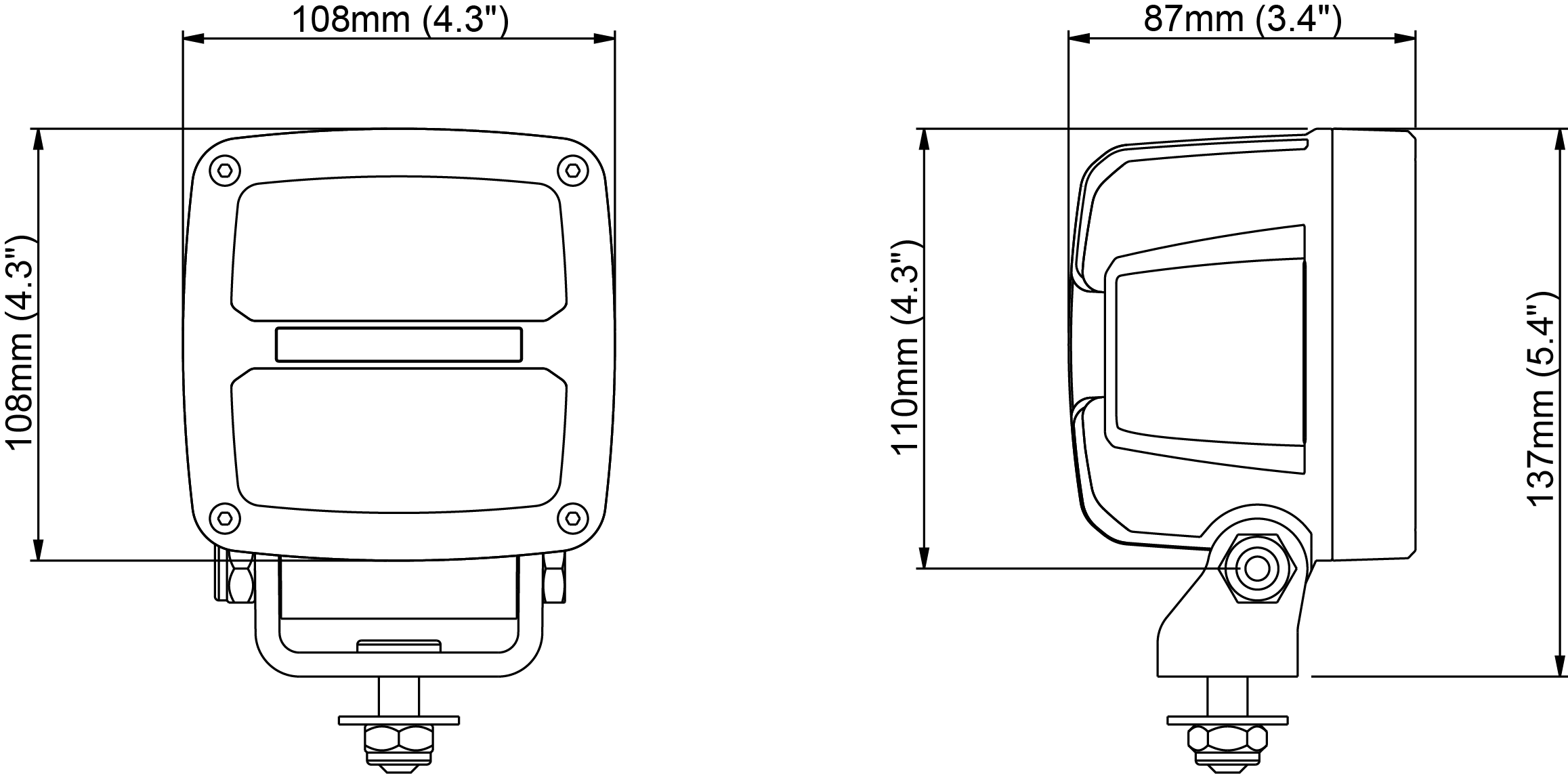

Drawings

Click to zoom

Part Numbers

Flood: 984-713B
High Beam: 984-716B
Wide Flood Asymmetric: 984-715B
Wide Flood Symmetric: 984-714B
