SCORPIUS N4402

NORDIC LIGHTS® Scorpius N4402 work light offers outstanding illumination with an operational lumens output of 4200 lm. It has an improved light output to power consumption ratio within same dimensions compared to its predecessor. This LED work light has a long lifetime and high operational safety with minimum maintenance. The Scorpius N4402 is suitable for harsh conditions and a wide range of applications.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration and shock resistant
  • Operational lumens output: 4200lm
  • For harsh conditions

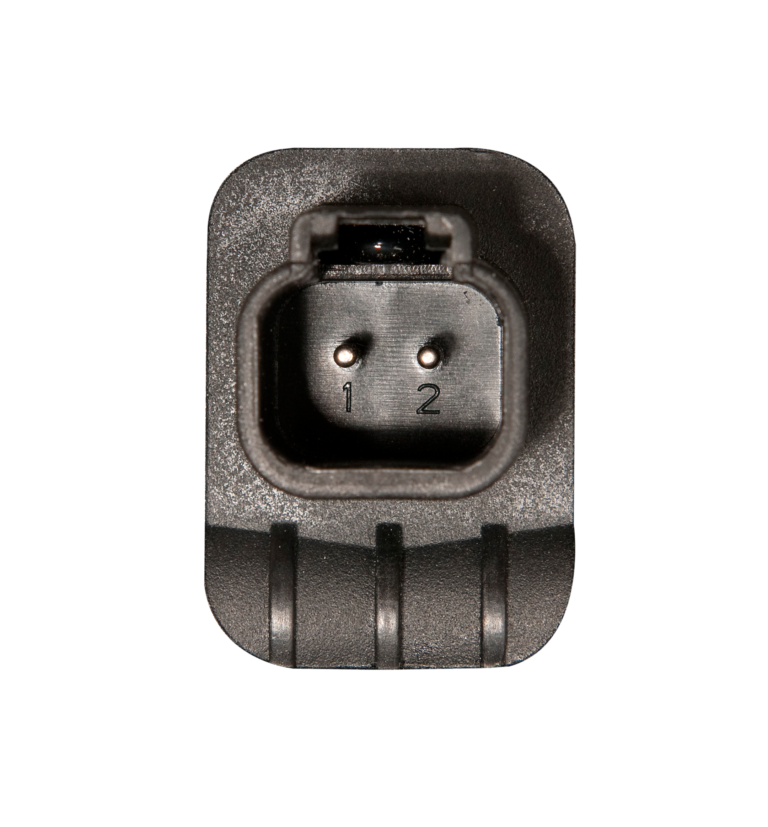

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output6700lm
Operational Lumens Output4200lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption50W
Nominal Current at24V=2.1A, 12V=4.2A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC
Body / HousingAluminium
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

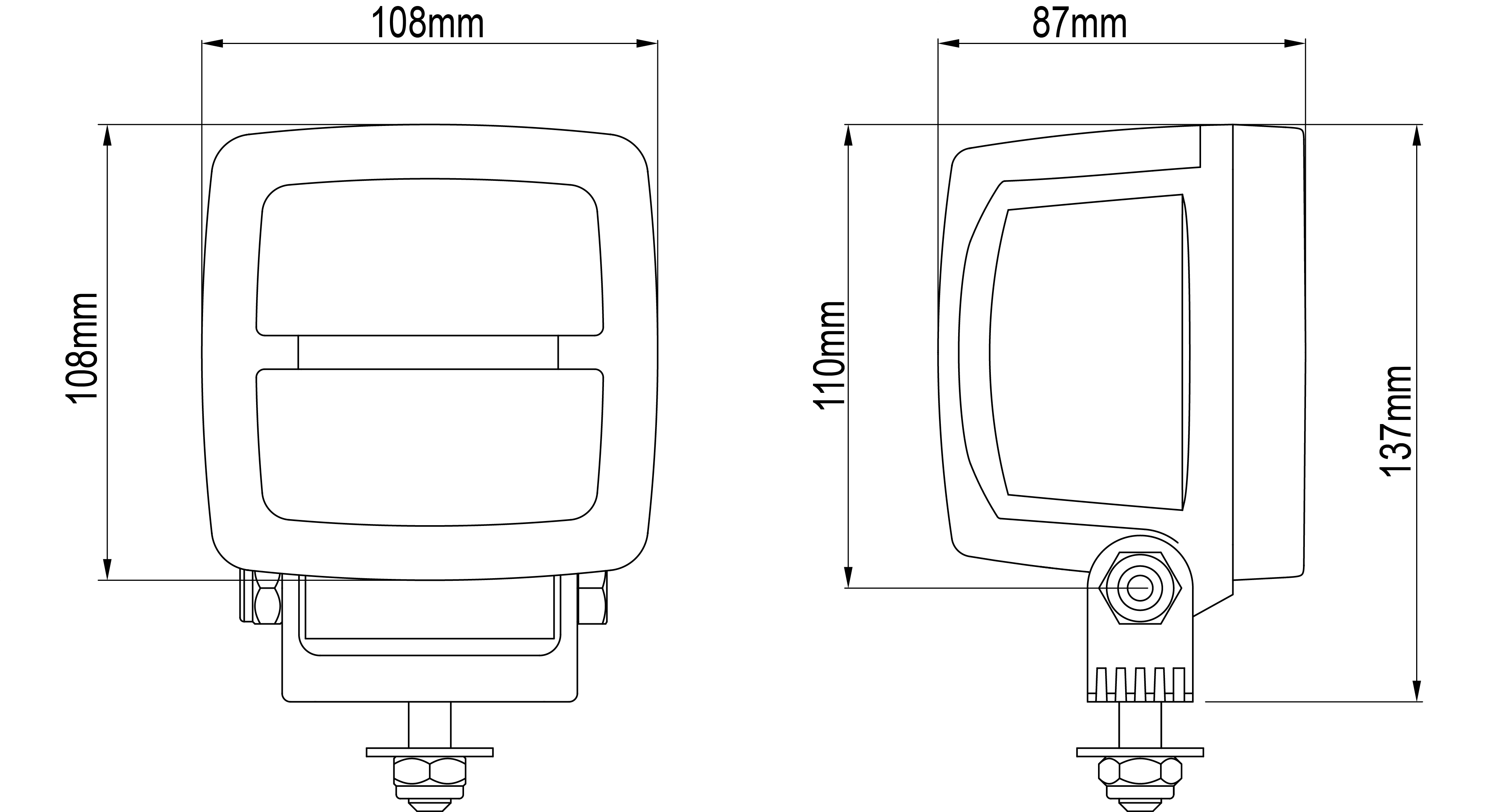

Drawings

Click to zoom

Part Numbers

Flood: 984-151
Wide Flood: 984-145
Low Beam: 984-152
High Beam: 984-153
