SCORPIUS N4408

NORDIC LIGHTS® Scorpius N4408 work light offers a sharp pencil beam and two other light pattern options: high beam and Glare-Free. This LED work light has a long lifetime and high operational safety with minimum maintenance. The Scorpius N4408 is suitable for harsh conditions and a wide range of applications.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Vibration and shock resistant
  • Operational lumens output: 3500lm
  • For harsh conditions

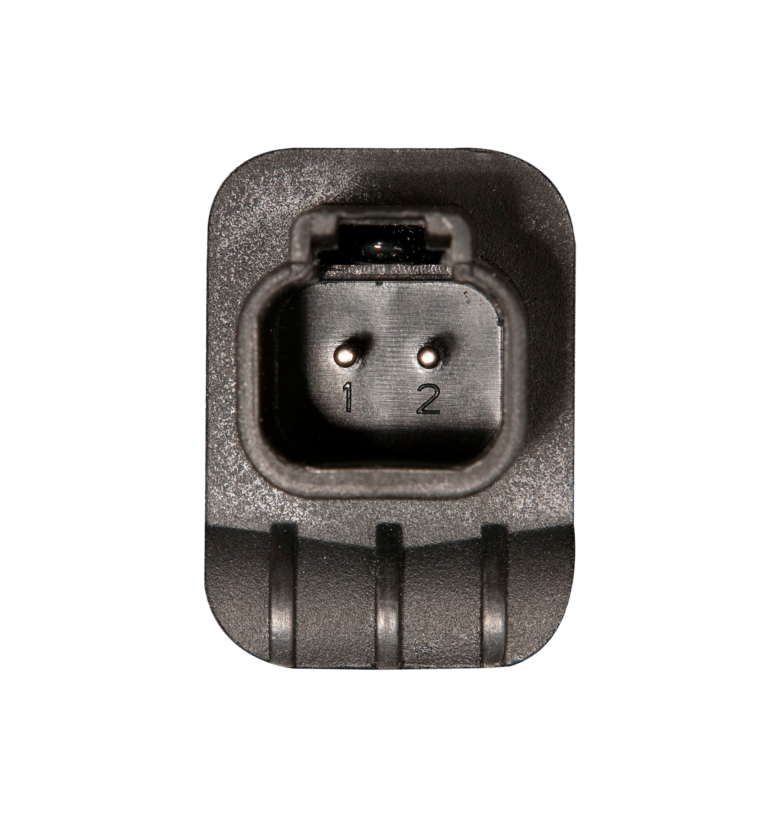

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output5600lm
Operational Lumens Output3500lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption55W
Nominal Current at24V=2.2A, 12V=4.6A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC / Glass
Body / HousingAluminum
Weight1.1kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 3, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

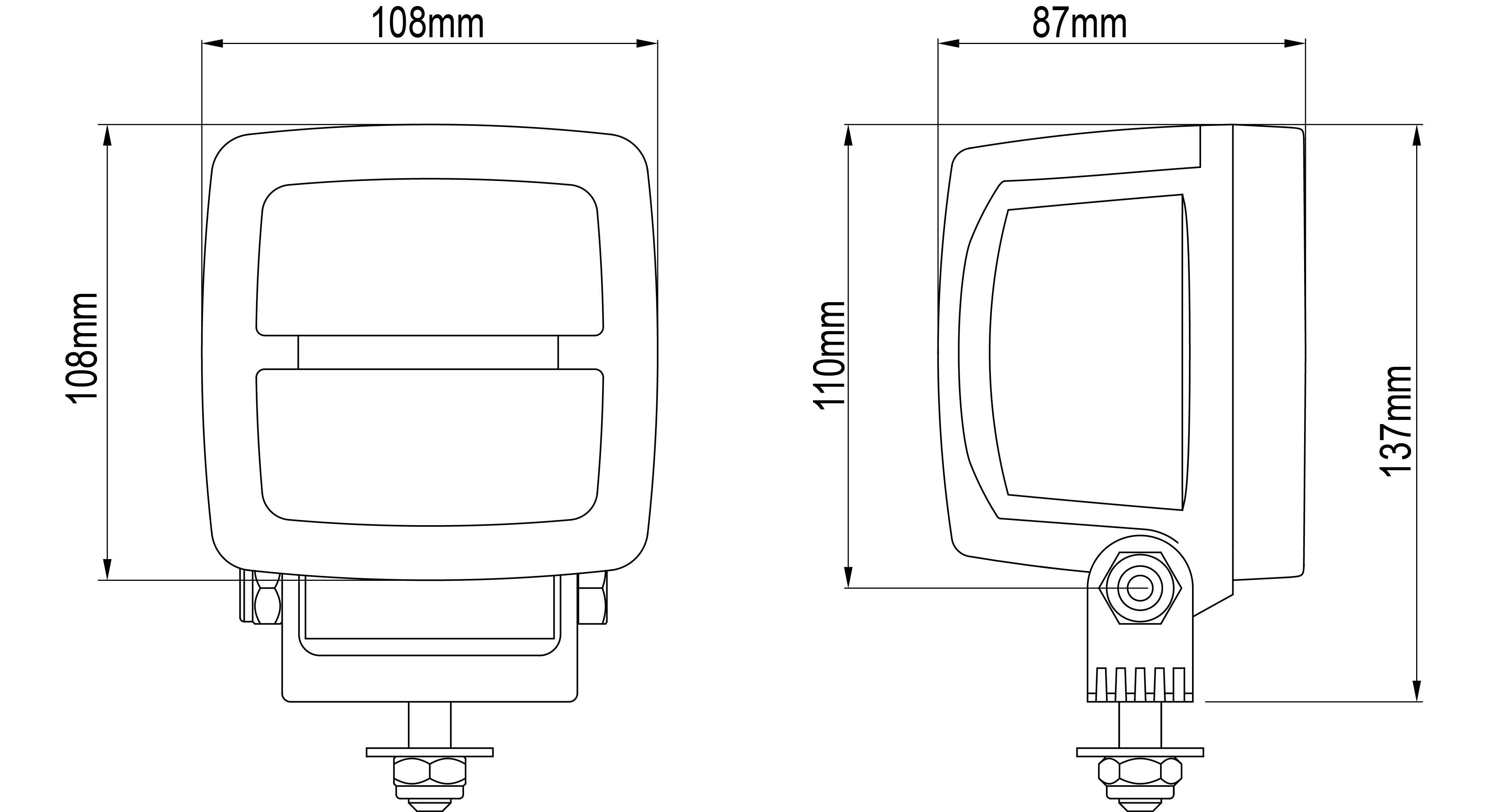

Drawings

Click to zoom

Part Numbers

Glare-Free: 984-525B
High Beam: 984-500
Pencil Beam: 984-501
