CANIS 2001

NORDIC LIGHTS® Canis N2001 is one of our smallest lights, with a single lamp, and a super wide light pattern. Produced with skidsteer loaders and telehandlers in mind, this light is suitable for mounting in tight spaces. It delivers strong illumination relative to its size. The Canis N2001 has a round form factor, pedestal mounting, and a light output of 1000 lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Ultra compact
  • Operational lumens output: 1000lm
  • Suitable for mounting in tight places

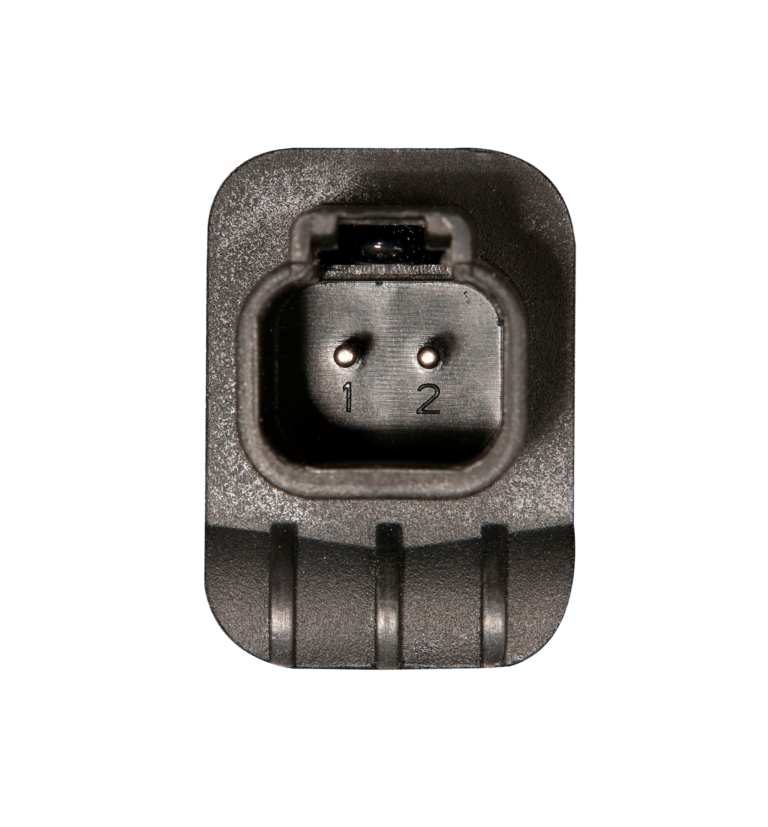

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output1600lm
Operational Lumens Output1000lm
Colour Temperature5700K
Nominal Voltage DC12 - 48V
Input Voltage DC9 - 68V
Power Consumption13W
Nominal Current at48V=0.25A, 24V=0.5A, 12V=1.0A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10, Single Bolt M8
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC
Body / HousingAluminium
Weight0.6kg
IP RatingIP68, IP6K9K, SAE J1455
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 3, EN 12895, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)
ElectronicsIsolated

Light Patterns

Click to zoom

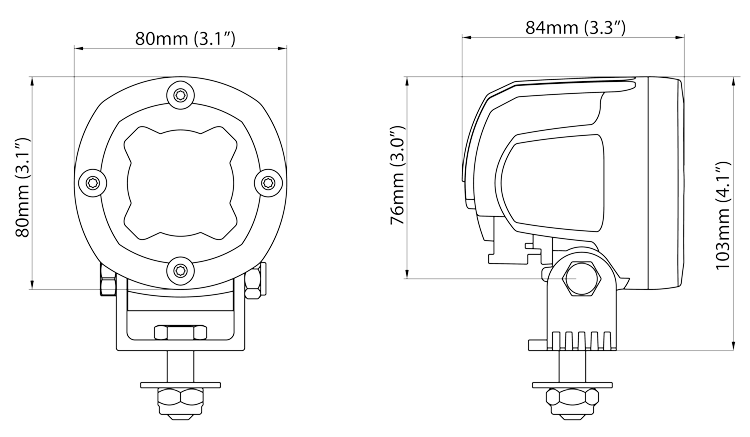

Drawings

Click to zoom

Part Numbers

High Beam: 980-103B
Super Wide: 980-104B
Flood: 980-102B
Wide Flood: 980-101B
