CANIS PRO 330

Born out of a search for raw power in a small package, the highly efficient Canis PRO 330 offers lots of lumens in a compact size. Perfect for demanding industries such as mining, construction, forestry and agriculture, this glass-lensed work light easily fits into tight spaces and is available with three different light patterns, including a horizontally extended Wide Flood and a slightly softer-than-usual High Beam. The Canis PRO 330 withstands vibrations of up to 15.3 Grms at 24-2000Hz and delivers 3000 operational lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • High lumen output, 3000lm – low energy consumption
  • Compact size for mounting in tight spaces
  • Tempered glass lens for excellent durability

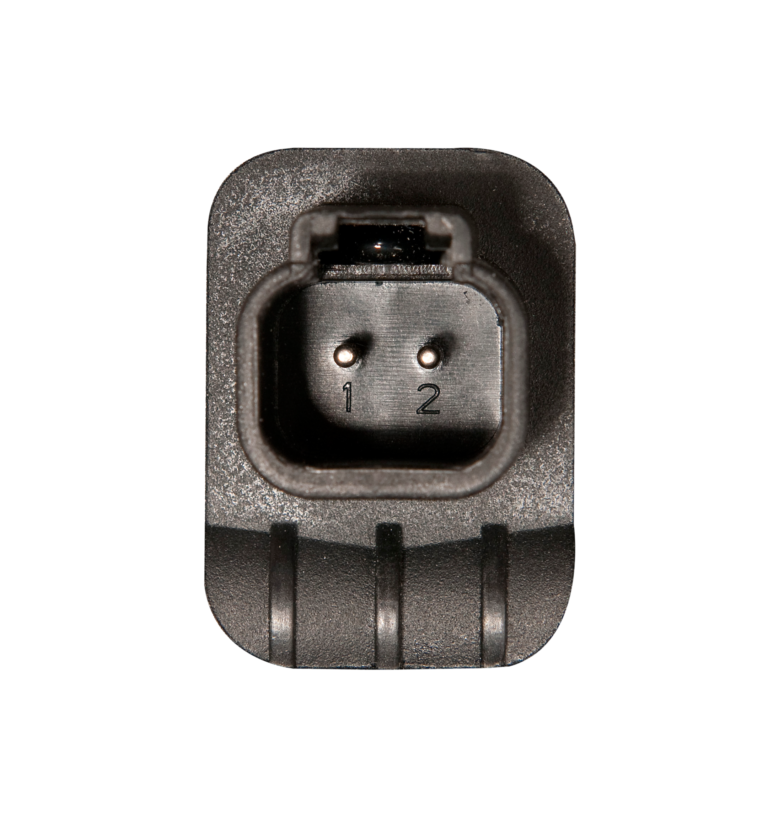

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output4800lm
Operational Lumens Output3000lm
Colour Temperature5000K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption28W
Nominal Current at12V=2.3A, 24V=1.15A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M8
Shock60G
Vibration15.3Grms 24-2000Hz
LensGlass
Body / HousingAluminum
Weight0.65kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, EN-12895
Operating Temperatures-40°C... +85°C (Full Power -40°C... +50°C)
ElectronicsIsolated

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

High Beam: 980-402B
Wide Flood: 980-401B
Flood: 980-403B
