N25 F0° - NORDIC LIGHTS® - Nordic Lights Ltd.


NORDIC LIGHTS® N25 Halogen F0° is a compact flush mount work light which allows unobtrusive fitting to vehicle panels, toolboxes and service bodies with limited space and with an angle of 0°.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Angle: 0°
  • Operational lumens output: 1400lm (24V)
  • Compact

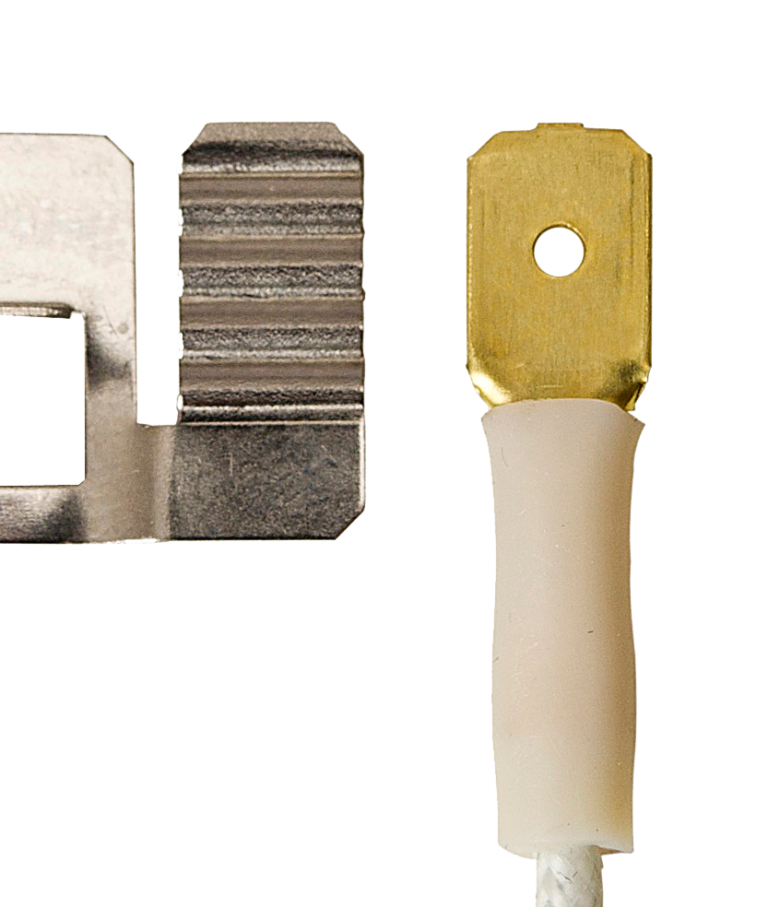

AMP Terminal

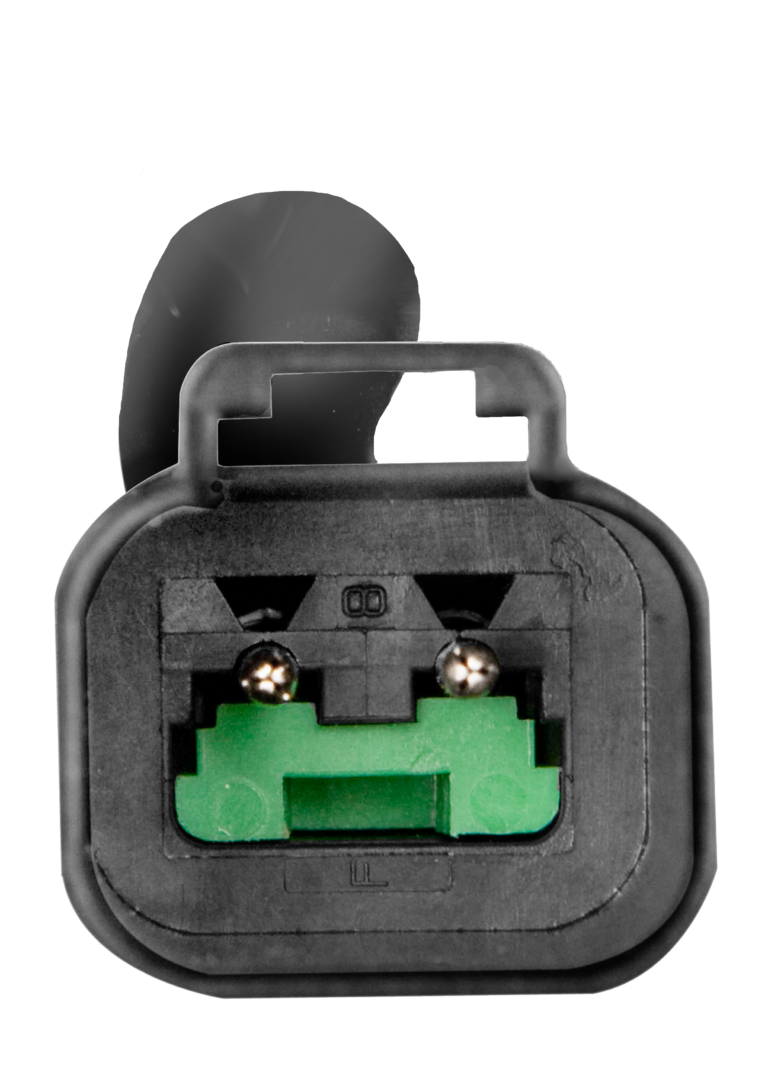

Pigtail Deutsch 2-pin

Technical Data

Theoretical Lumens Output 12V, 24V1450lm, 1750lm
Operational Lumens Output 12V, 24V1100lm, 1400lm
Colour Temperature3200K
Nominal Voltage DC12V, 24V, 36V, 48V, 80V
Input Voltage DC8 - 16V, 16 - 32V, 28 - 44V, 33 - 68V, 56 - 110V
Power Consumption12V: 55W, 24V HD Bulb: 65W, 24V: 70W
Nominal Current at12V=4.6A, 24V=2.7A, 36V=2.0A, 48V=1.4A, 80V=0.7A
ConnectorAMP Terminal, Pigtail Deutsch 2-pin
LensHardened Glass
Body / HousingPolyamide
Salt Spray TestISO 9227 240H
Operating Temperatures-40°C... +85°C

Light Patterns

Click to zoom


Click to zoom
