SCULPTOR N6001 QD

NORDIC LIGHTS® Sculptor N6001 QD driving light integrates headlight, direction indicator, and position light in one unit. Unbeatable in its durability, this heavy-duty light is equipped with our integrated Quake dampening system, withstanding shocks of 60G and vibration of 15.3 Grms at 24–2000 Hz. The Sculptor N6001 QD has rear mounting and is very useful in agricultural, construction, and trucking applications. It has a dual-beam function with both low and high beams, which offers any vehicle using this light an amazing advantage.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • All-in-One Durable Headlight
  • QUAKE dampening system
  • Dual-beam, Rear mount

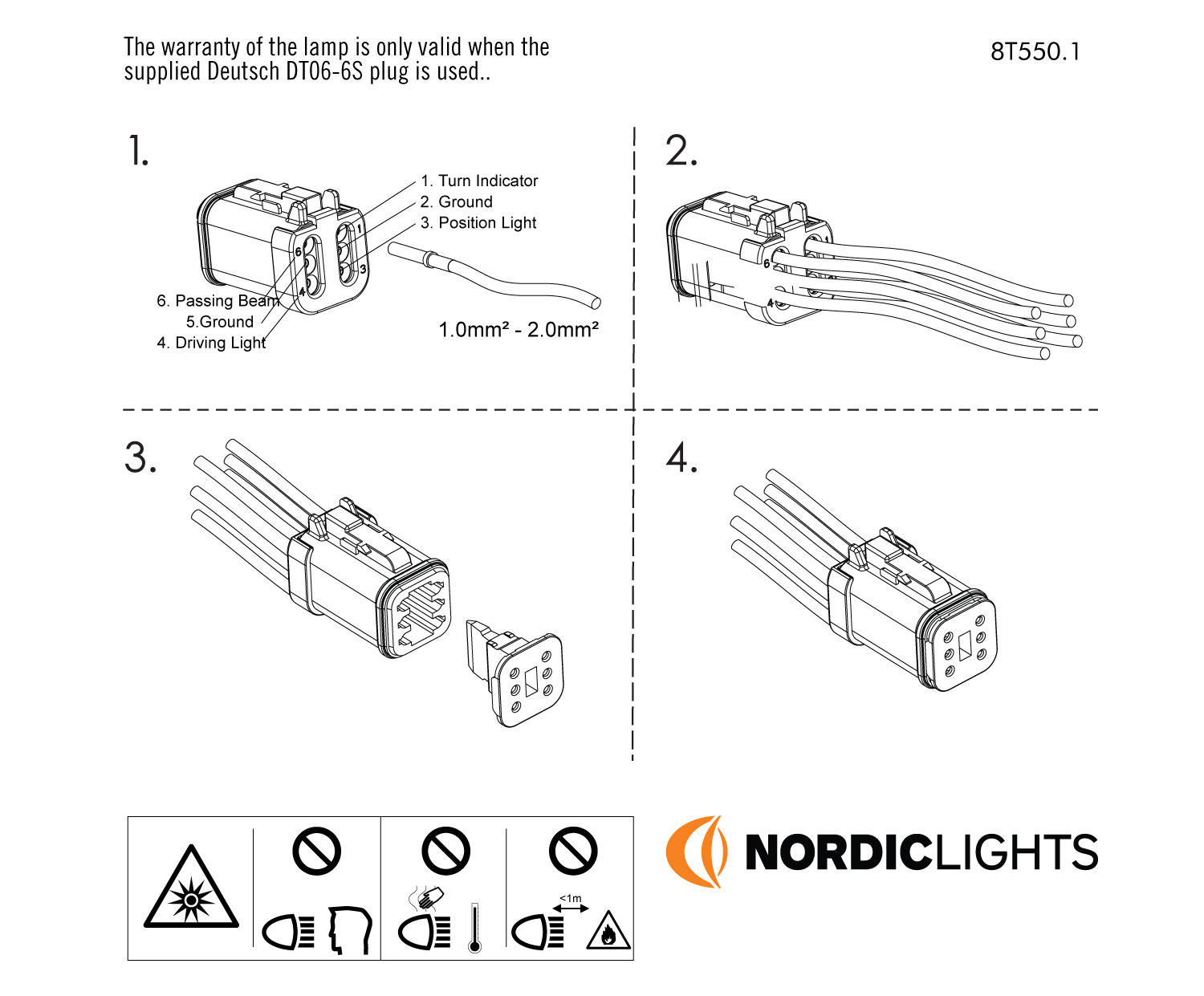

Connectors


DT06-6S-Assembly

Built-in Deutsch 6-pin

Technical Data

Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power ConsumptionHigh Beam 34W, Low Beam 17W, Park 2.7W, Indicator 17.5W
Nominal Current at 12 / 24VLow Beam 0.7A @ 24V, 1.4A @ 12V, High Beam 1.4A @ 24V, 2.8A @ 12V
ConnectorBuilt-in Deutsch 6-pin
MountSingle Bolt M10
Shock60G
Vibration15.3Grms 24-2000Hz
LensPC
Body / HousingAluminum
Weight2.5kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 3, EN 13309, EN 61000-4-2, ISO 14982-2, ISO 13766, ISO 11452, ISO 7637-2, ISO 10605
ECE ApprovalsPassing beam: ECE Regulation 112, class B for right & left hand traffic, Driving beam: ECE Regulation 112, class B, Reference number 25, Position light: ECE Regulation 7, Direction Indicator: ECE Regulation 6, class 1b (front), Direction Indicator: ECE Regulation 6, class 5 (side)
Operating Temperatures-40°C... +85°C (Overheat protected)

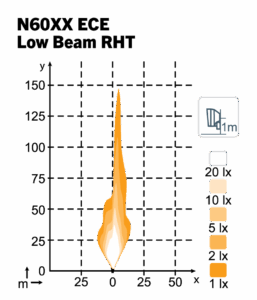

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

LHT Right: 960-021
LHT Left: 960-022
RHT Right: 960-023
RHT Left: 960-024
