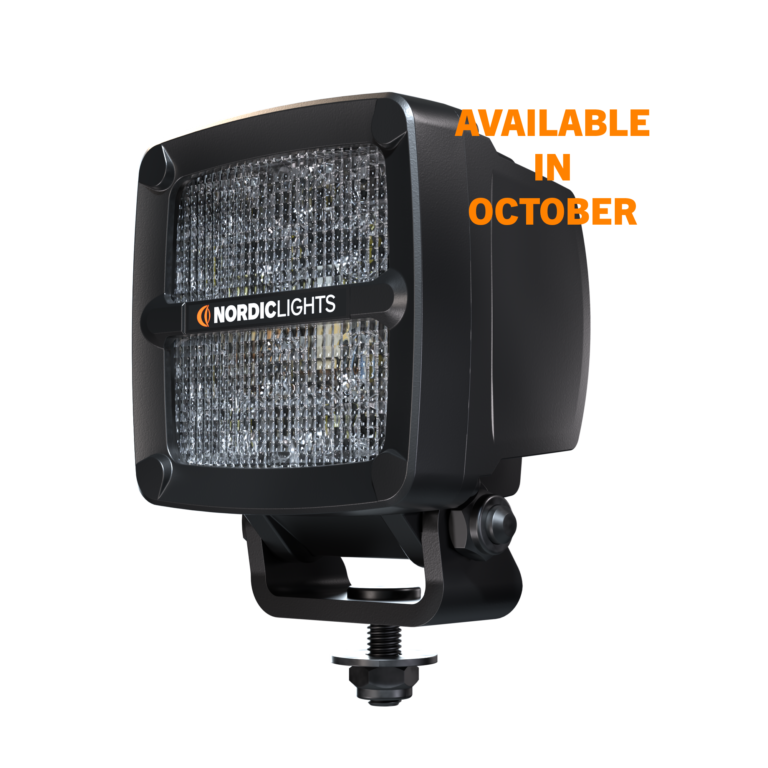

SCORPIUS PRO 3500 S

Available in October: the Scorpius PRO 3500 S arrives with a Glare-Free light pattern. The Glare-Free optics are designed with a clear cut-off line on eye level, with maximum visibility under the cut-off line. You’ll gain excellent near-field illumination and work area lighting, without blinding other vehicle operators or on-foot personnel. Equip the Scorpius PRO 3500 S to the back, sides, and even to the front of your machine. The Scorpius PRO 3500 S comes in at 3500 operational lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Glare-Free optics
  • Scratch-resistant coating
  • For harsh conditions

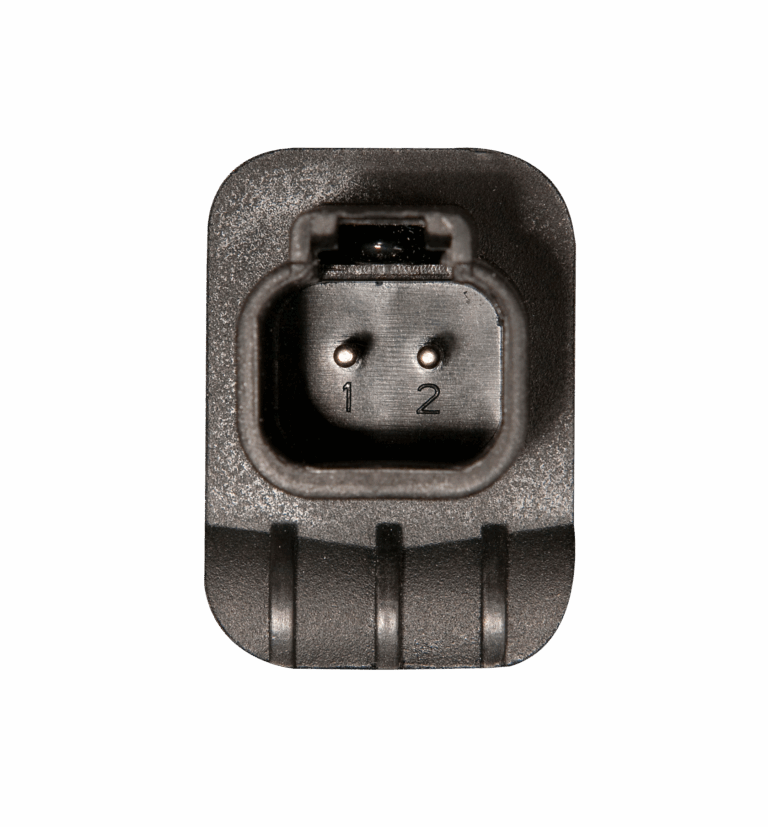

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output4500lm
Operational Lumens Output3500lm
Colour Temperature5700K
Nominal Voltage DC12 - 24V
Input Voltage DC9 - 32V
Power Consumption50W
Nominal Current at24V=2.0A, 12V=4.2A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M10
Shock60G
Vibration15.44Grms 10-2000Hz
LensPlastic
Body / HousingAluminum
Weight1.1kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

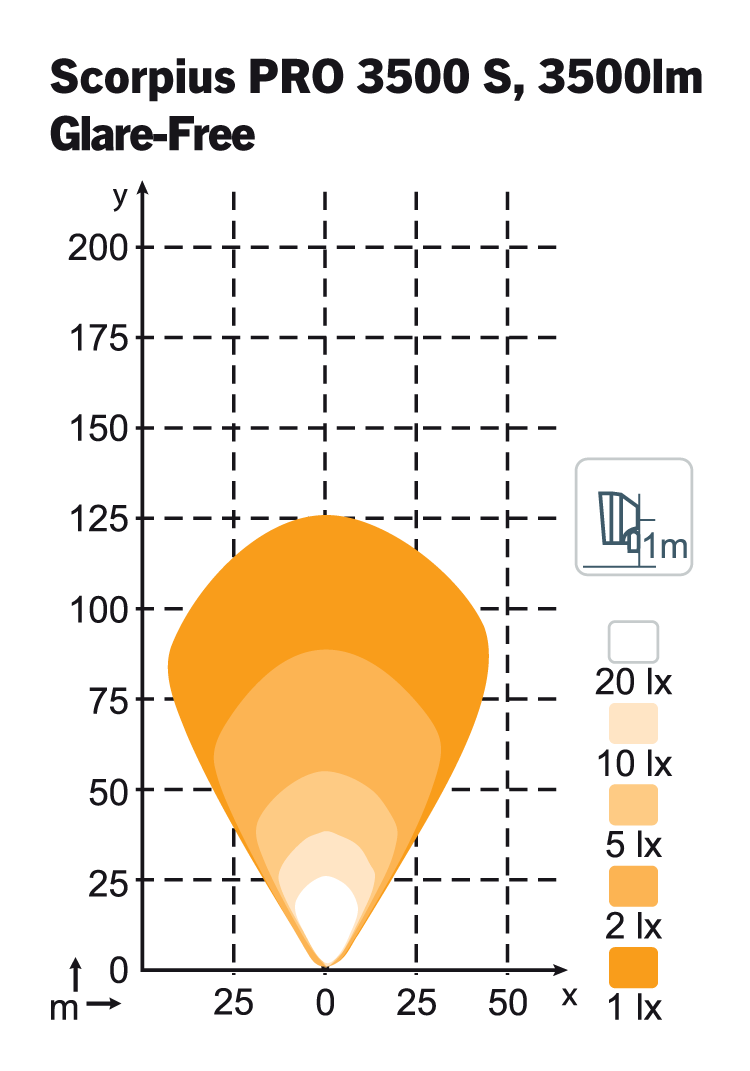

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

Glare-Free: TBA
