Sato PRO 730 SNAP-IN

With a light pattern optimized for tractors and other agricultural vehicles, and a tempered glass lens for excellent chemical resistance, the Sato PRO 730 Snap-In is ready to hit the fields. Thanks to the perfect color rendering that allows you to see clearly and easily distinguish different materials, this work light will make your job easier and more efficient. Unwanted electrical interference will not compromise the operation of your vehicle as this light is ECE R10-approved. The hassle-free Sato PRO 730 Snap-In is a plug-and-play replacement for other oval work lights on the market. An excellent fit for agriculture, the Sato PRO 730 Snap-In withstands vibration of up to 8 Grms at 24-2000Hz and delivers 3000 operational lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Easy fit with integrated snap-in mount
  • Optimized illumination of a specific area
  • Tempered glass lens for excellent durability

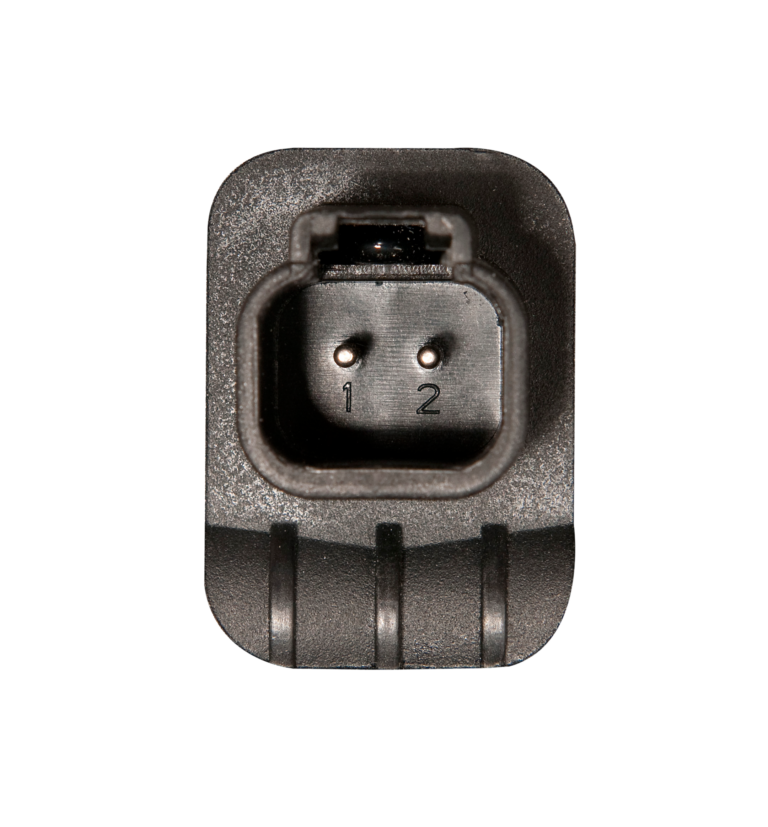

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output4800lm
Operational Lumens Output3000lm
Colour Temperature5000K
Nominal Voltage DC12V, 24V
Input Voltage DC9 - 16V, 18 - 32V
Power Consumption43W
Nominal Current at12V=2.8A, 24V=1.5A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountIntegrated
Shock60G
Vibration8Grms 24-2000Hz
LensGlass
Body / HousingAluminum
Weight0.8kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, EN 12895, ECE R10
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

Flood: 985-413B
