SCORPIUS GO 410

Our entry-level Scorpius GO 410 is easy to use.
It is lighter in weight than the original Scorpius work light, and the light pattern options are two: flood and wide flood. Useful in construction, forestry, agriculture, and material handling, the Scorpius GO product family has a square form factor and pedestal mounting. The Scorpius GO 410 produces zero emissions (EMC CISPR 25 class 5) and its light output is 1000 lumens.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Dimmable & Cost effective all-rounder
  • Operational lumens output: 1000lm
  • Pure performance in a compact design

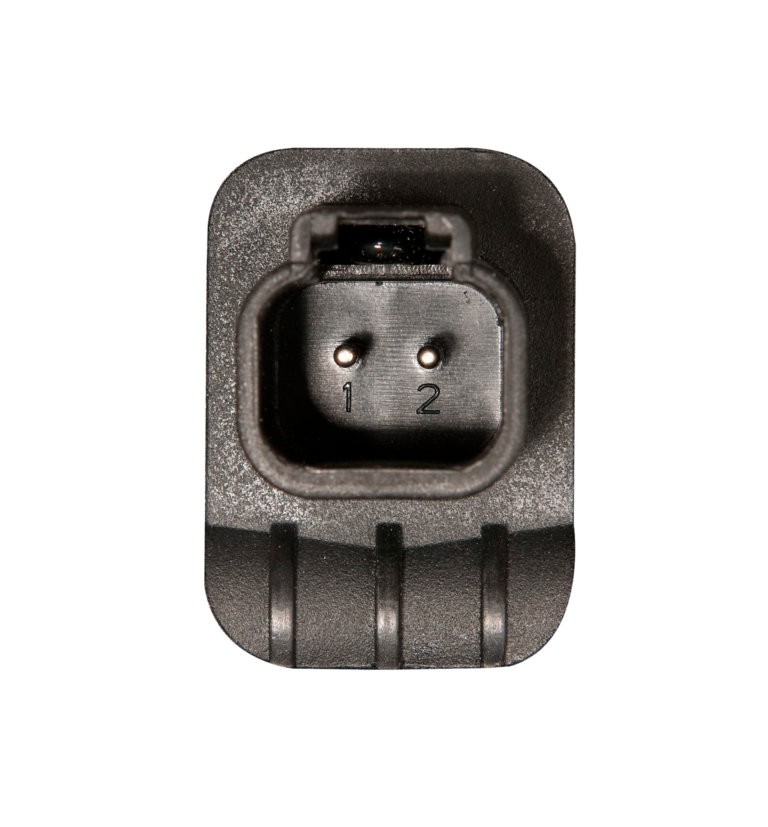

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output1600lm
Operational Lumens Output1000lm
Colour Temperature5000K
Nominal Voltage DC12 - 24V, 36 - 48V
Input Voltage DC9 - 16V, 18 - 32V, 30 - 64V
Power Consumption16W, 18W
Nominal Current at12V=1.05A, 24V=0.6A, 36-48V=0.38A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M8
Shock60G
Vibration8Grms 24-2000Hz
LensGrilamid® (registered trademark of EMS-GRIVORY)
Body / HousingAluminium
Weight0.6kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

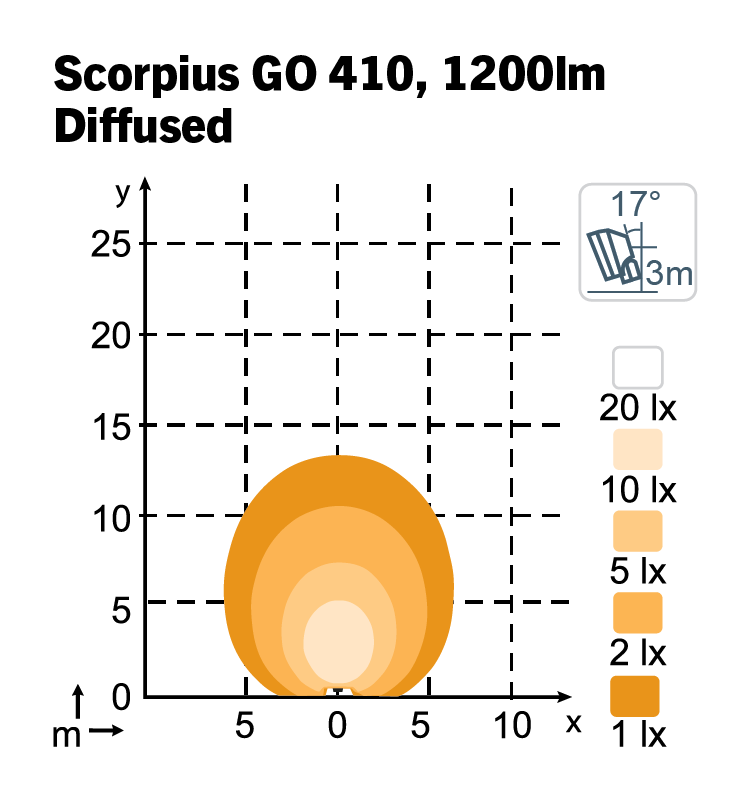

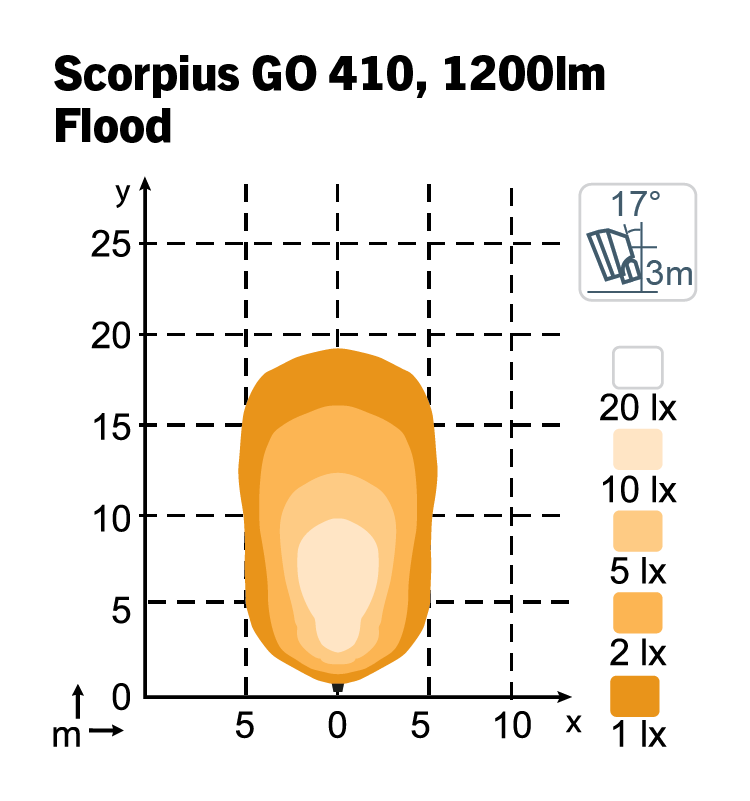

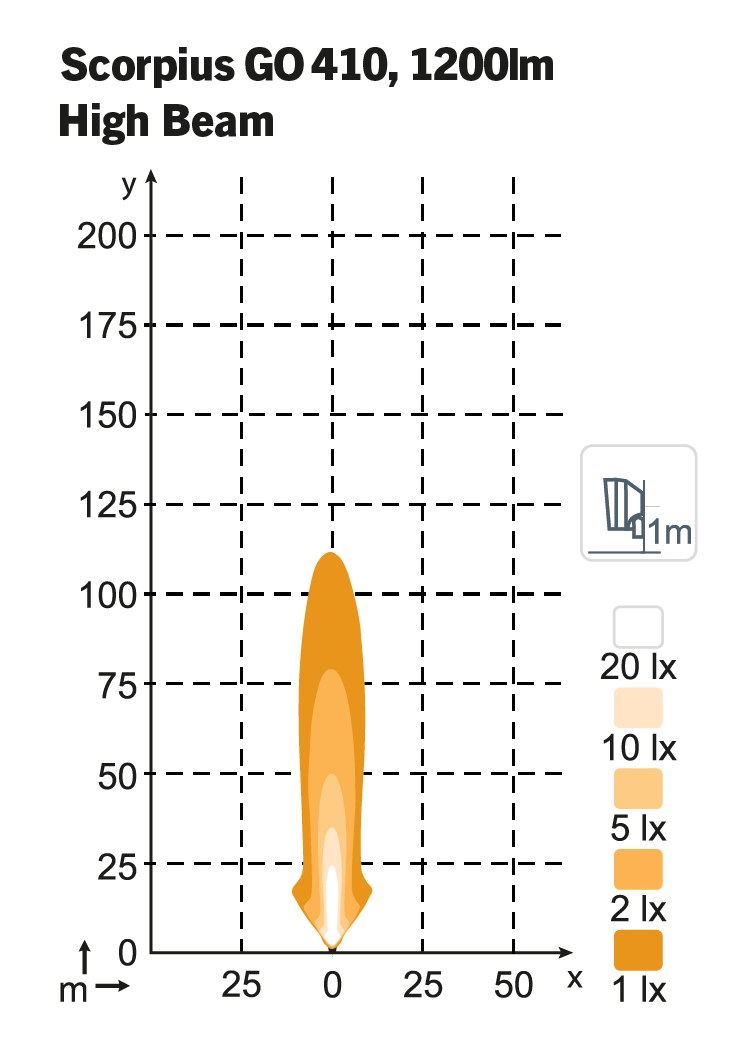

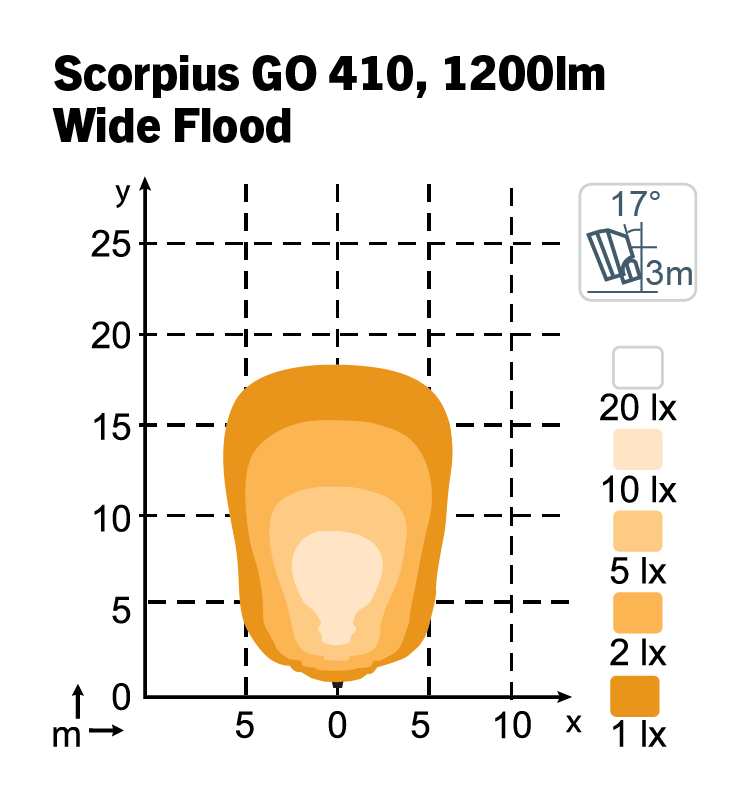

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

Wide Flood: 988-201B
Flood: 988-202B
