SCORPIUS GO 410-2

Available in January: The Scorpius GO 410-2 brings the rugged, square Scorpius design into the next generation of GO work lights. Compact, efficient, and easy to install, it delivers dependable lighting performance for daily operations.
With upgraded internal design and enhanced light quality, the Scorpius GO 410-2 is well suited to construction, agriculture, forestry, and material handling applications. Available with Glare-Free, Wide Flood, Flood, High Beam and Diffused light patterns.

Not all products are available in all markets. During continuous improvement specifications and design are changing. All values are nominal values. Illustrations do not necessarily show the design of every version and some features are version specific. The lumens output varies depending on lens colour.

Key Features

  • Dimmable & Cost-effective all-rounder
  • Operational lumens output: 1200lm
  • Pure performance in a compact design

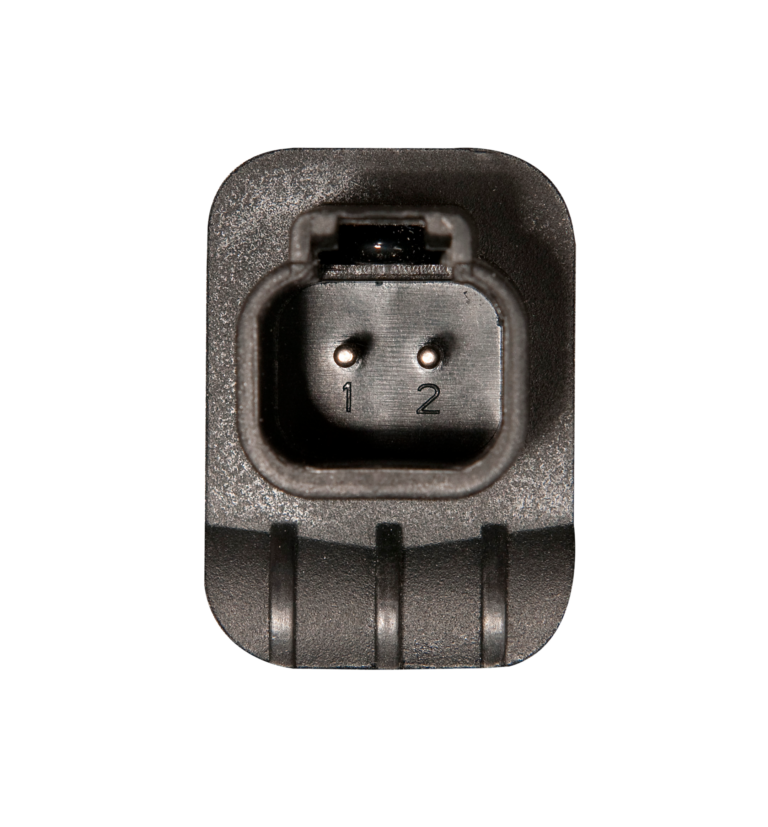

Connectors


Built-in Deutsch DT-2 (2-pin)

Technical Data

Theoretical Lumens Output1900lm
Operational Lumens Output1200lm
Color Temperature5000K
Nominal Voltage DC12 - 24V, 36 - 48V
Input Voltage DC9 - 16V, 18 - 32V, 30 - 64V
Power Consumption18W
Nominal Current at36-48V=0.38A, 24V=0.6A, 12V=1.1A
ConnectorBuilt-in Deutsch DT-2 (2-pin)
MountSingle Bolt M8 / M10
Shock60G
Vibration8Grms 24-2000Hz
LensPlastic
Body / HousingAluminum
Weight0.4kg
IP RatingIP68, IP6K9K
Salt Spray TestISO 9227 240H
EMCCISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2
Operating Temperatures-40°C... +85°C (Overheat protected)

Light Patterns

Click to zoom

Drawings

Click to zoom

Part Numbers

Wide Flood: TBA
High Beam: TBA
Flood: TBA
Diffused: TBA
Glare-Free: TBA
